• Model NO.：TB12 ETB-12 ETB-25 ETB-40
• Max Sheet Thickness：4mm
• Throat depth：300mm
• Cylinder speed：15.3rpm
• motor：2.2KW
• Transport Package：Plywood Case
• Specification：CE SGS ISO9001
• Trademark：HOTON
• Origin：Shandong, China
• HS Code：8462299000
• Production Capacity：25 PCS,Month

Basic Info.

Model NO. TB12 ETB-12 ETB-25 ETB-40 Max Sheet Thickness 4mm Throat depth 300mm Cylinder speed 15.3rpm motor 2.2KW Transport Package Plywood Case Specification CE SGS ISO9001 Trademark HOTON Origin Shandong, China HS Code 8462299000 Production Capacity 25 PCS/Month

Product Description

STEEL PLATE BEAD BENDING FEATURES:
1. The Bead bending machine makes swaged plate, connection and so on of circular pipes, which refer to crushing the thin plates into the ribs in certain shapes.
2. The rigidity of the plates, pipes or metal components is strengthened.
3. Special steel adjustable bottom spindle

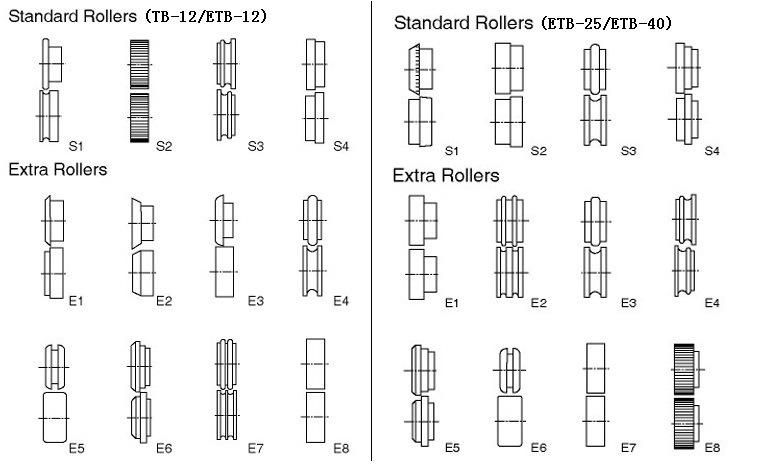

4. 4 sets standard rollers
MAIN TECHNICAL PARAMETER

MODEL	TB-12	ETB-12	ETB-25	ETB-40
Thickness max	1.2mm/18Ga	1.2mm/18Ga	2.5mm/12Ga	4mm/8Ga
Cylinder length	140mm/ 5-1/2"	140mm/ 5-1/2"	120mm/ 4-3/4"	165mm / 6-1/2"
Throat depth	200mm / 8"	200mm / 8"	280mm / 11"	300mm / 12"
Throat depth	-	0.75kW / 1HP	20rpm	15.3rpm
Cylinder speed	-	120kg/265lb	1.5kW / 2HP	2.2kW / 3HP
Net weight	48kg/106lb	120kg/265lb	235kg/518lb	341kg/752lb
Packing size (cm)	67x32x60	110x48x148	147x58x135	165x58x140

Contact Us:

Andy Wang  TENGZHOU HOTON MACHINERY CO.,LTD Tel:0086 632 5633796 MP:0086 13506328892 hotonmachinery.en.made-in-china.com

Company Profile:

Tengzhou Hoton Machinery Co.,LTD was established in 2006, and is the professional machine manufacturer in China. There are 480 workers, of whom 60 are engineers. It has an area of 46,000 square meter, general assets 30,000,000. It has a store of 350 equipments and the good ability of products design & manufacturing. It has export quality permit from 2007, and has export right given by the State Foreign Economic Trade Committee in 2008.

The leading products: "Hoton" series of CNC machines, Lathes, Milling machines, Drilling machines,Grinding machines, Saws, Sheet metal machines, Metal forming machines, and other machine accessories.Some products have national patent.It has fourteen series, over eighty models by itself. It has the ability of making 100,000 sets every year. All the products are designed perfectly and has high quality high performance and low price, and the excellent quality guarantee system. The products have past ISO9001 and CE certification since 2009. The products have been export to five continents, over forty countries and areas. It resulted to the attraction of client abroad and home, the quickly promotion of products sale.

Tengzhou Hoton Machinery Co.,Ltd. is willing to make common progress and developments with all the customers. Quality first,Constantly perfecting skills.
