High Precision Fourteen Axes Wire Rotary Spring Wire Bending Forming Machine
Dongguan Hua Yi Da Spring Machinery Co., Ltd.- Waterproof Rating：IPX-8
- Warranty：1-year
- Condition：New
- Certification：RoHS, ISO 9001:2000, ISO 9001:2008, CE, UL
- Automation：Automatic
- Suitable for：Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Base Info
- Model NO.：HYD-40T-12A
- Type：Coiling Bending Machine
- Machine Model：Hyd-40t-12A
- Diameter Range：1.0-4.0mm
- Machine Size：1400*900*1600mm
- Machine Weight：700kg
- Transport Package：Standard Wooden Box
- Specification：1400*900*1600mm
- Trademark：HYD
- Origin：Dongguan, Guangdong, China
- HS Code：84633000
- Production Capacity：300 PCS,Years
Description
Technical parameters
Model
Axis Count
Wire Size Range
high-carbon steel:1-4mm
Lead rail
Wire feeding count
Max Feeding speed
Maximum error
Control system+decoiler
Servo motor power
Reducer
Minimum length of ange
Machine size
Machine weight
Machine Details
1. Equipped with the computer-controlled system imported from Taiwan and servo motor imported from Japan.
2. The parameters such as major diameter and angle can be modified at any time according to the working status displayed on the fluorescence screen.
3. It is suitable for producing double torsion spring, straight spring, pagoda-shaped compression spring, rectangle spring, swirl spring and other different spring and special-shaped spring etc.

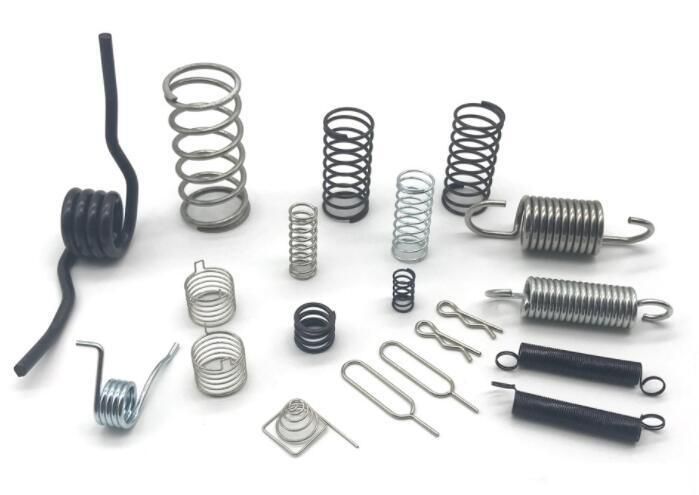

Spring Picture
Packaging & Delivery
---Packaging Details in standard sea-worthy 2 plywood-cases to pack this machine,
Delivery Port
---Shenzhen or other specially designated port.
Company Introduction
----HYD is a production and sales combined company, with more than 15 years experience in spring machine
industry, which make us become a experienced and reliable supplier.HYD manufacture CNC spring machine,wire
bending machine,spring coiling machine ect,all of them are CNC,automatic.
