40ton 2200mm E21 Hydraulic Plate Press Brake
Anhui ZhongDe Machine Tool Co., Ltd.- Warranty:1-year
- Condition:New
- Certification:ISO 9001:2008, CE
- Automation:Semi-Automatic
- Suitable for:Aluminum, Alloy, Carbon Steel, Stainless Steel
- Type:Press Brake
Base Info
- Model NO.:WC67Y-40,2200
- Product Name:40ton 2200mm E21 Hydraulic Plate Press Brake
- Model:Wc67y-40,2200
- Controller:E21
- Max Bending Capacity:400kn
- Max Bending Length:2200mm
- Transport Package:Steel Fixed
- Specification:40T,2200
- Trademark:ZDMT
- Origin:China
Description
Basic Info.
Model NO. WC67Y-40/2200 Product Name 40ton 2200mm E21 Hydraulic Plate Press Brake Model Wc67y-40/2200 Controller E21 Max Bending Capacity 400kn Max Bending Length 2200mm Transport Package Steel Fixed Specification 40T/2200 Trademark ZDMT Origin ChinaProduct Description

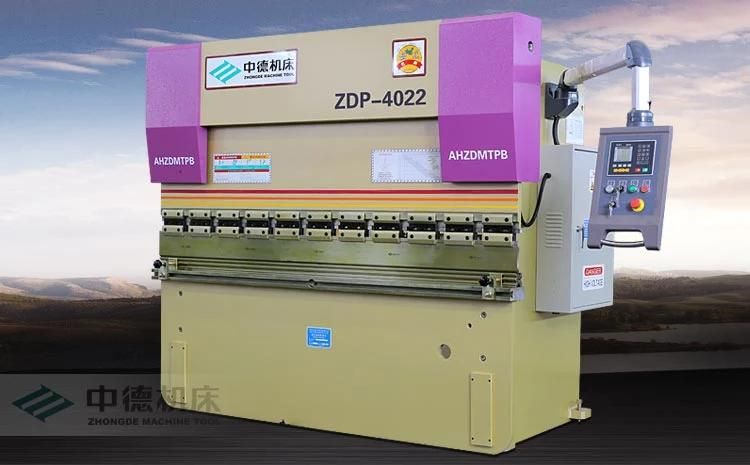

40Ton 2200mm (ZDP-4022) E21 Hydraulic Plate Press Brake
Main functions and features :
· Total steel welded structure and stress elimination by vibration.
· High mechanical strength and strong rigidity.
· Ram stroke hydraulic approaching downward,stable and reliable.
· E21 can control the movement of ram stroke and backgauge,achieving efficient and highly precise positioning.
· Wedge compensation on top punch clamping.

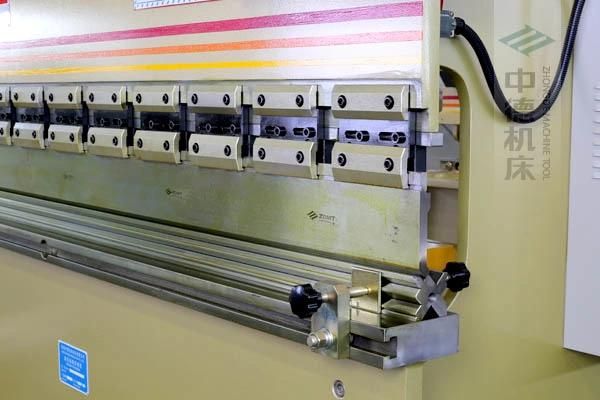

· Simplified top blades clamping with micro-adjustment wedges,for easy operation and high precision.
· 2 Sliding front sheet support arms mounted onto T slot of the bed.
· Segmented 88° top blade.
· Solid one block four face multi V die.
· Approved stable and reliable hydraulics.
· Stop fingers with milscale for plate bending machine.

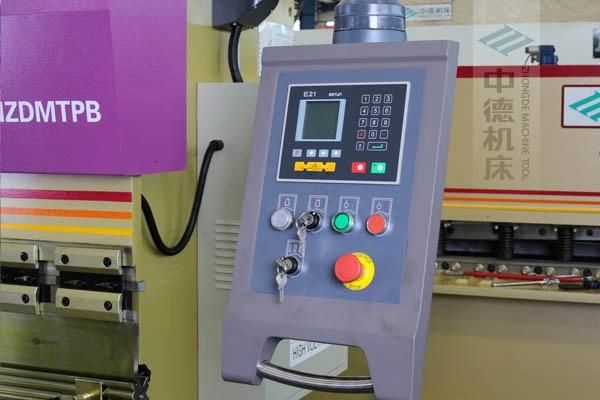

Related configuration with details :· ZDP-4022 with E21 simple CNC controller.
· ZDP-4022 with half built-in type motor and oil pump,strong power and low noise.
· Standard multiple V moulds/dies for ZDP-4022,with multi-function.

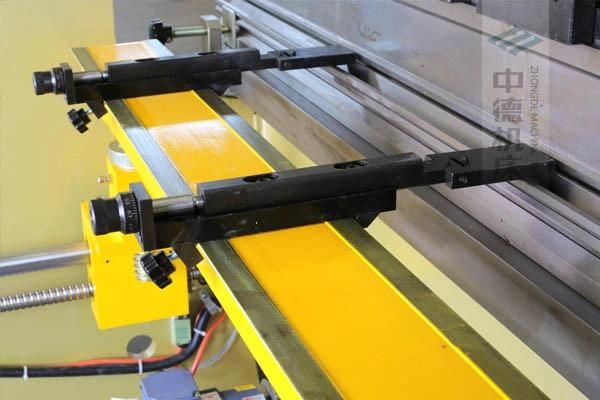

· ZDP-4022 with hardening and high strength stop fingers,inverted triangle and locking device.

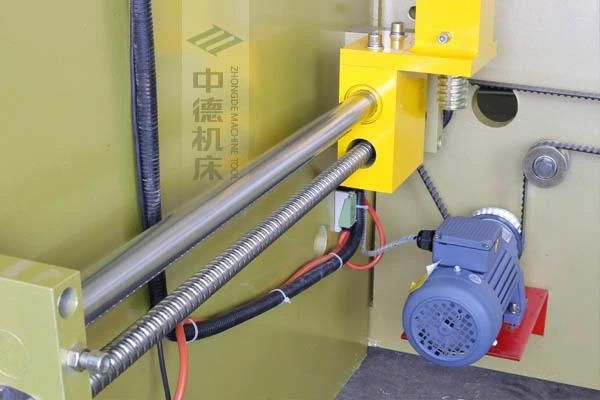

· ZDP-4022 with high precision X axis structure,installed with ball screw for high precision.
· ZDP-4022 with high precision backgauge.
· ZDP-4022 with high quality hydraulic valve,stable and durable.
· ZDP-4022 with high strength torsion bar synchronization device,using Harbin bearing,structure of tempering,strong and high precision.
· The backgauge of ZDP-4022 with steel synchronous belt,high quality and no noise.

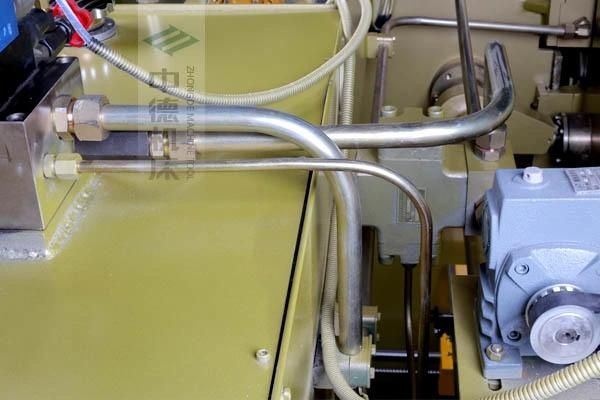

· ZDP-4022 with full-metal pipe shroud connection,nonexpansion when high temperature,can guarantee precision for long time.
