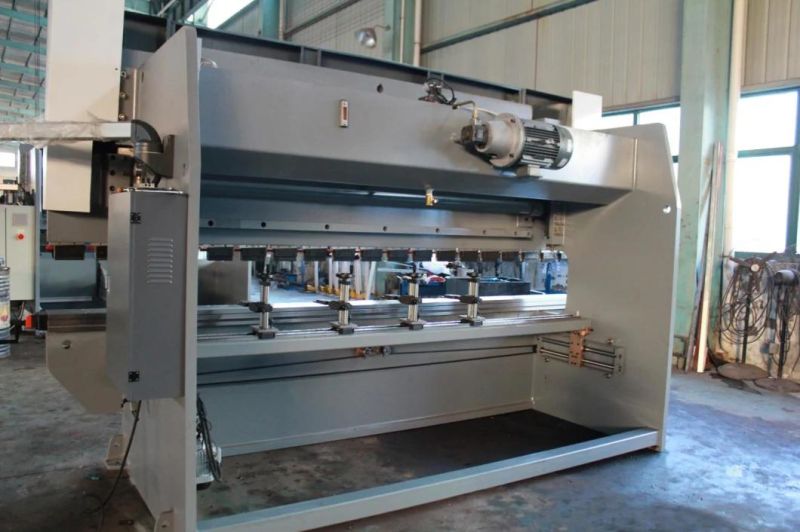

Torsion Bar Hydraulic Press Brake Kcn-20032
Nanjing Jinqiu CNC Machine Tool Co., Ltd.- Waterproof Rating:IPX-8
- Warranty:2-year
- Condition:New
- Certification:RoHS, ISO 9001:2000, ISO 9001:2008, CE, UL
- Automation:Semi-Automatic
- Suitable for:Aluminum, Carbon Steel, Stainless Steel
Base Info
- Model NO.:KCN-20032
- Type:Cnc Bending Machine
- Size:Depend on You
- Color:All Colors Avaliable
- Transport Package:Nude Package or Plastic Paper
- Specification:CE & ISO Certificated
- Trademark:KingBall
- Origin:China
- HS Code:8462299000
- Production Capacity:100 Sets,Month
Description
ItemParameter Unit 1 Nominal pressure 2000 KN 2 Table length 3200 mm 3 Max.Slider stroke 220 mm 4 Max.Shut height 480 mm 5 Between columns 2600 mm 6 Throat depth 350 mm 7 Main motor power 15 KW 8 Down Speed 100 mm/s 9 Pressing Speed 8 mm/s 10 Return Speed 90 mm/s 11 Control axis X+Y / 12 X axis Stroke 500 mm 13 Backgauge Stoppers 2 /
Overall dimensionL 3700 mm 14 W 1920 mm H 2780 mm 15 Machine weight 12500 kg

Backgauge with ball screw and round guide

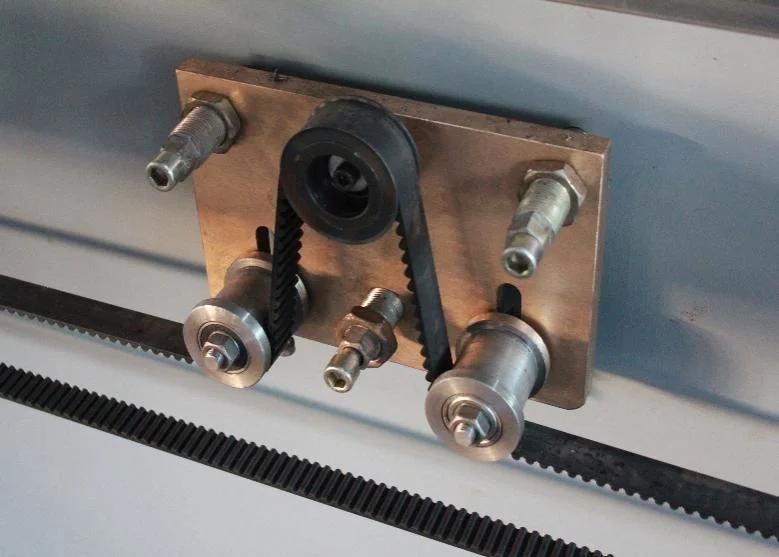

Multifunction adjustment of the tightening wheel

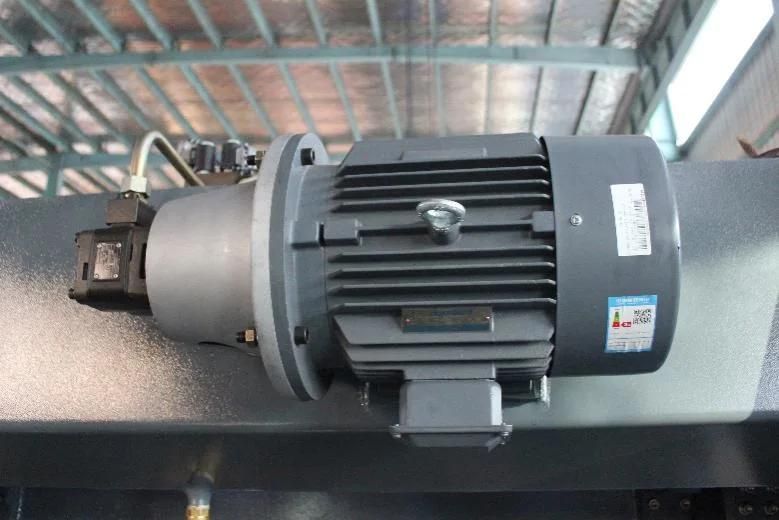

Siemens main motor German brand.
Sunny pump USA brand.
Rexroth valve German brand.

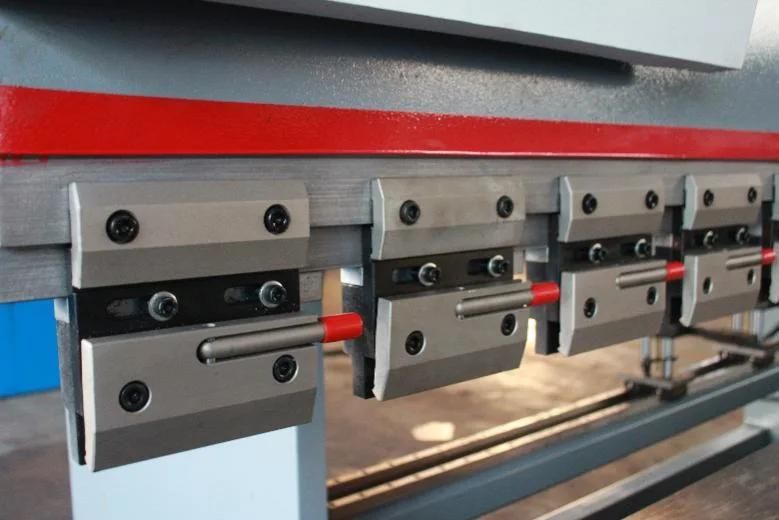

European style quick release clamping

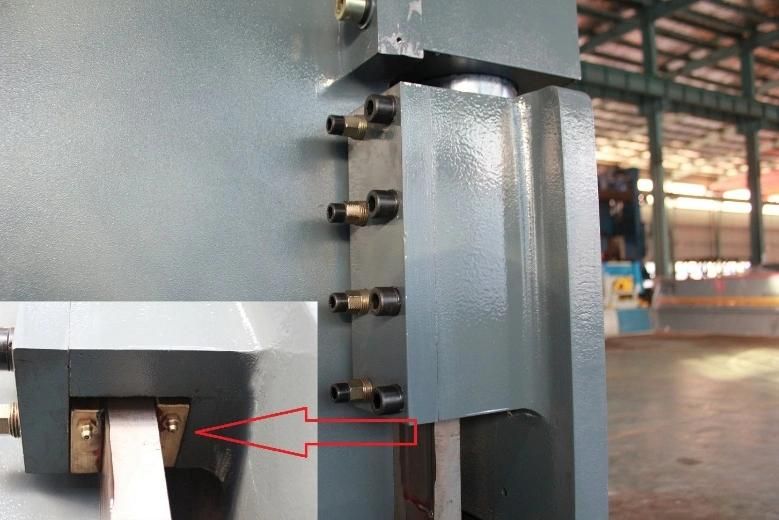

The guideway use the brass, wear-resisting, long service life.

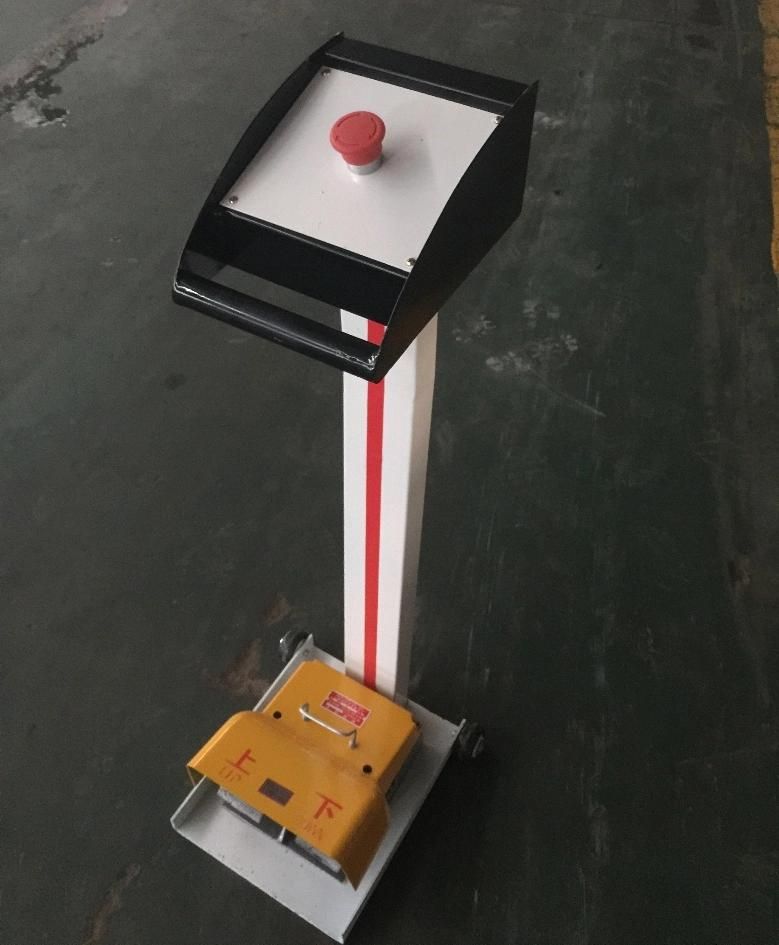

Pedal switch with emergency stop, safe operation, the base with rollers easy to move.

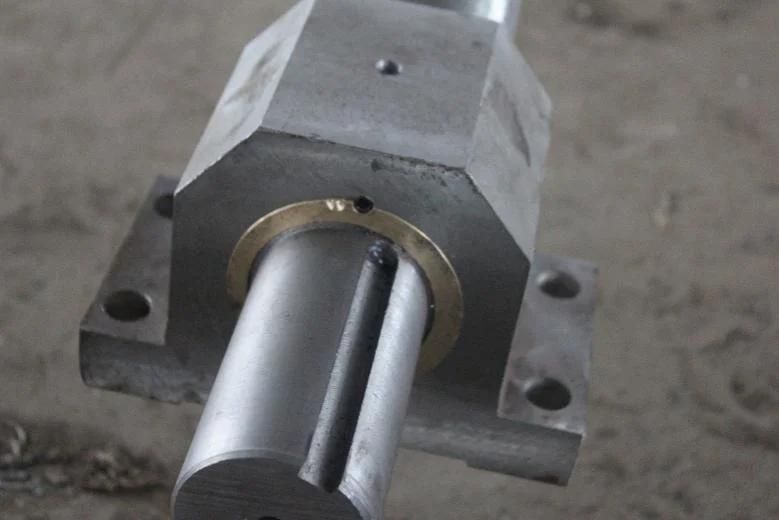

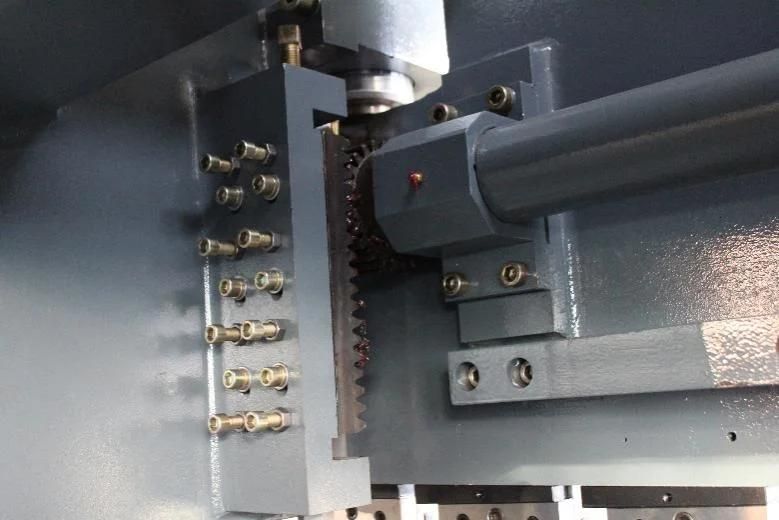

The torsion bar is synchronized with the gear rack. ram down fast, easy to adjust the two sides of the synchronization. The connector use wear - resistant brass.

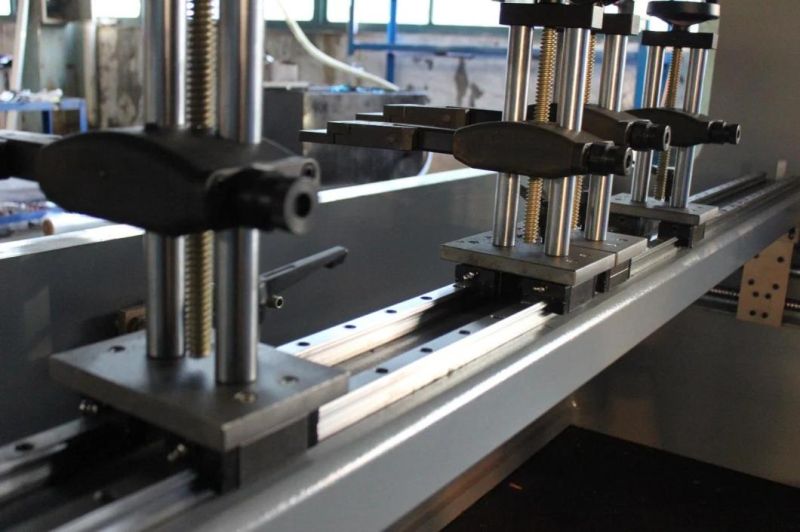

The stopper up and down by manual, move left and right on two linear guides,
Main configuration

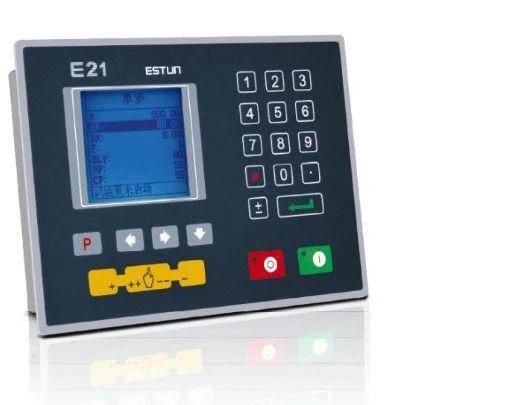

E21 NC controller

Backgauge and block control
Control for general AC motors, frequency inverter Intelligent positioning
Stock counter Holding/decompression time setting
Program memory of up to 40 programs Up to 25 steps per program
One side positioning Retract function
One key backup/restore of parameters mm/inch
Chinese /English
The standard accessories are in the below:
Overall dimension


Backgauge with ball screw and round guide

Multifunction adjustment of the tightening wheel

Siemens main motor German brand.
Sunny pump USA brand.
Rexroth valve German brand.

European style quick release clamping

The guideway use the brass, wear-resisting, long service life.

Pedal switch with emergency stop, safe operation, the base with rollers easy to move.


The torsion bar is synchronized with the gear rack. ram down fast, easy to adjust the two sides of the synchronization. The connector use wear - resistant brass.

The stopper up and down by manual, move left and right on two linear guides,
Main configuration
Name | Producer |
CNC controller | E21 Estun China Brand |
Main motor | Siemens Germany brand |
Electrical components | Schneider France brand |
Gear pump | Sunny USA brand |
Seal ring | NOK Japan brand |
Hydraulic system | Boschrexroth Germany brand |
Ball screw ,Linear guide | HIWIN Taiwan brand |
Tubing connector | EMB Germany Brand |
E21 NC controller

Backgauge and block control
Control for general AC motors, frequency inverter Intelligent positioning
Stock counter Holding/decompression time setting
Program memory of up to 40 programs Up to 25 steps per program
One side positioning Retract function
One key backup/restore of parameters mm/inch
Chinese /English
The standard accessories are in the below:
- Anchor bolt
- Hex nut
- Seal ring
- Gasket
- Grease gun
- Allen wrench
- Foot switch
- Front support arms
- Electrical box key, control panel key
- Operation manuals
