• Model NO.：40T2500B
• Type：Press Brake
• Nom,Inal Pressure：400, 630, 800, 1400. 1500, 1600. 2000 2500 3000 Kn
• Worktable Length：2500, 3200, 4000. 5000. 6000. 7000 mm
• Control System：Tp10, E21s, Delem Da53, 56, 58, 66, 69t, CT8 CT12
• Deflection Compensation：Yes
• Bending Tools：Standard Punch and Square Die or by Custom
• Bend Thickness：1 2 3 4 5 6 mm or by Custom
• Transport Package：Film , in Bulk
• Specification：40T2500
• Trademark：XINMECHAN
• Origin：China
• Production Capacity：2000 PCS,Month

Basic Info.

Model NO. 40T2500B Type Press Brake Nom,Inal Pressure 400, 630, 800, 1400. 1500, 1600. 2000 2500 3000 Kn Worktable Length 2500, 3200, 4000. 5000. 6000. 7000 mm Control System Tp10, E21s, Delem Da53, 56, 58, 66, 69t, CT8 CT12 Deflection Compensation Yes Bending Tools Standard Punch and Square Die or by Custom Bend Thickness 1 2 3 4 5 6 mm or by Custom Transport Package Film / in Bulk Specification 40T2500 Trademark XINMECHAN Origin China Production Capacity 2000 PCS/Month

Product Description



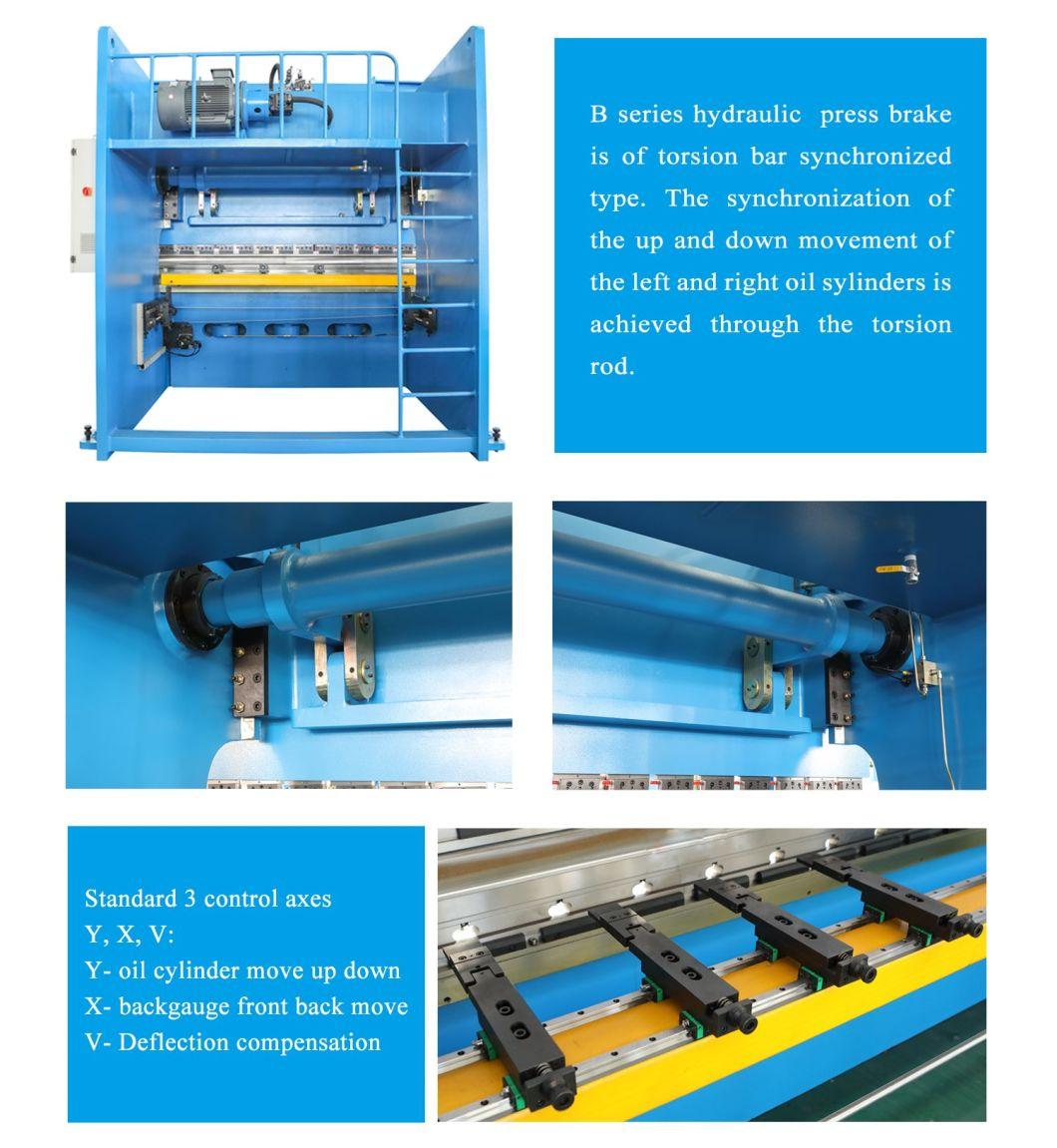

Main motor and back gauge control axis

1. The Y1 and Y2 axes are slider travel control shafts that control bend angles.
Two magnetic gate rulers (Y1-Y2) are installed at both ends of the machine, which are used to determine the exact position of the slider and the workstation. The grating ruler is connected to the work table so that the elastic deformation of the column does not affect the positioning of the slider. The slider displacement data is immediately fed back into the CNC system, which can measure and output servo valve control signal.

2. The X-axis is a rear stop control shaft that controls the bend-over dimensions. For X-axis, an imported servo motor is used that drives the ball screw with a synchronous toothed wheel. The two back gauge claws are always in sync during movement. The transmission is smooth. The precision is high with low noise.

3.The R-axis is the control rear stop lift shaft. When required it is moved by a servo motor, and the rear stop can be lifted and lowered as needed.

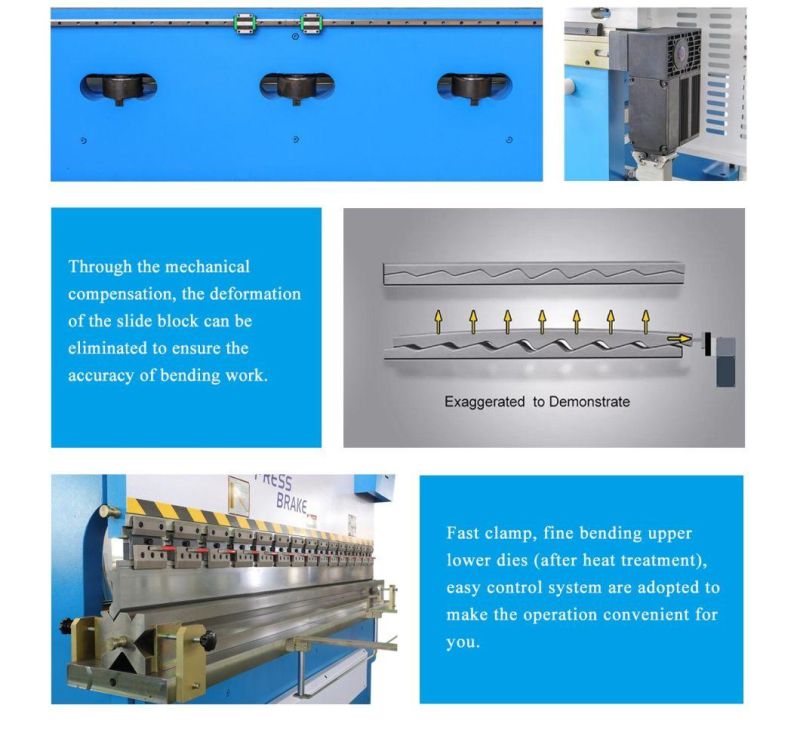

4. The work station adopts mechanical compensation device, which makes the angle and straight line after bending to reach the best condition by making the center overall deflection compensation of the work station.
5. The rear stop material uses HIWIN straight guide rail and ball screw.
6. The structure of the back gauge is beautiful and reasonable, the rear bezel frame is milled from a thick plate, no welding, all with screw connection, can fully guarantee the operation accuracy, easy to repair. The back gauge mold beam is strong and not easy to distort or deform. There are two straight guide rails and two sets of lifting and fine-tuning devices on the beam to correct the bend accuracy.
7. The front support frame adopts a double straight-line guide, ensuring quick and stable adjustment, can be lifted and lowered freely.


Hydraulic System

1) The oil pump adopts Japan NACHI high-pressure inner tooth pump which can withstand high pressure but low noise.
2) Cylinder: 45# steel toned treatment. The inner hole is processed with fine boring, honing.
3) Pistons: 45# steel toned treatment, outer round chrome plating, fine grinding, vibration grinding.
4) The sealing ring is of German MERKEL brand, with good and reliable sealing performance, ensuring long life.
5) The system shows clear and intuitive oil level height.
6) Hydraulic system is divided into coarse and fine two-stage filtration, with high filtration accuracy.

Slider

1. Upper dynamic bend design, with smooth work, easy and safe to operate.
2. At the bottom dead point, there is a pressure delay function to ensure the accuracy of the work piece.
3. The slider has a large stroke range. And the double parallel tolerance is 0.02mm.
4. Under the relevant national standard conditions, the bend angle accuracy can reach 30'.
5. With the function of slow rebound control, the operator can control the work piece easily.
6. If choose the Y-axis control state, operating the electronic hand wheel can allow the slider to move up/down arbitrarily.

Specification chart

Model	Pressure (kN)	Length of Worktable (mm)	Distance of column (mm)	Throat Depth (mm)	Stroke / times	Max. Height (mm)	Main Power (Kw)	Dimension L*W*H (mm)
40T/2200	400	2200	1775	250	100/10	320	5.5	2300*1500*2000
40T/2500	400	2500	1975	250	100/10	320	5.5	2600*1500*2000
63T/2500	630	2500	2095	250	120/10	360	5.5	2600*1600*2300
63T/3200	630	3200	2570	250	120/10	360	5.5	3300*1600*2300
80T/3200	800	3200	2565	320	120/10	360	7.5	3300*1700*2300
80T/4000	800	4000	3165	320	120/10	360	7.5	4100*1700*2300
100T/3200	1000	3200	2560	320	120/8	360	7.5	3300*1800*2400
100T/4000	1000	4000	3160	320	120/8	360	7.5	4100*1800*2400
125T/3200	1250	3200	2550	320	120/7	360	7.5	3250*1920*2450
125T/4000	1250	4000	3450	320	120/7	360	7.5	4000*1920*2500
160T/3200	1600	3200	2540	320	180/6	440	11	3300*1600*2600
160T/4000	1600	4000	3140	320	180/6	440	11	4100*2000*2600
160T/6000	1600	6000	4740	320	180/6	440	11	6100*2000*2600
200T/3200	2000	3200	2540	320	250/3	530	11	3300*2100*2800
200T/4000	2000	4000	3140	320	250/3	530	11	4100*2100*2900
200T/5000	2000	5000	3940	320	250/3	530	11	5100*2100*3000
250T/4000	2500	4000	3120	400	250/3	560	18.5	4100*2200*3500
250T/5000	2500	5000	3920	400	250/3	560	18.5	5100*2200*3500
250T/6000	2500	6000	4720	400	250/3	560	18.5	6100*2200*3500
300T/5000	3000	5000	3910	400	250/3	560	22	5100*2600*4000
300T/6000	3000	6000	4710	400	250/3	560	22	6100*2600*4000
300T/7000	3000	7000	5620	400	250/3	560	22	7100*2600*4400
320T/7000	3200	7000	5620	400	250/2.5	560	22	7100*2600*4400
350T/6000	3500	6000	5100	400	250/2.5	560	30	6100*2600*4200
350T/7000	3500	7000	5620	400	250/2.5	560	30	7100*2600*4500
400T/4000	4000	4000	3100	400	300/2.5	620	30	4100*2700*3800
400T/6000	4000	6000	4280	400	320/2.5	620	30	6100*2800*4200
500T/5000	5000	5000	4100	400	320/2.5	630	37	5100*3000*4400
500T/6000	5000	6000	4820	400	320/2.5	630	37	6100*3000*4700
500T/7000	5000	7000	5620	400	320/2.5	630	37	7100*3000*4900
600T/6000	6000	6000	4820	400	320/2.5	630	46	6100*2965*4700
600T/7000	6000	7000	5620	400	320/2.5	630	45	7100*2965*4900
