• Model NO.：ZSCL-12X1850
• Material Thickness：12mm
• Finished Length：8000mm
• Length Accuracy：1mm
• Diagonal Accuracy：2mm
• Line Speed：25m,Min
• Coil Weight：30 Tons
• Width Accuracy：1mm
• Power：AC 380V, 50Hz
• Protection Level：IP40
• Advantage：High Precision
• Transport Package：Seaworthy
• Specification：50 m L X 11 m W
• Trademark：ZeYe
• Origin：China
• HS Code：84623120
• Production Capacity：70

Basic Info.

Model NO. ZSCL-12X1850 Material Thickness 12mm Finished Length 8000mm Length Accuracy 1mm Diagonal Accuracy 2mm Line Speed 25m/Min Coil Weight 30 Tons Width Accuracy 1mm Power AC 380V, 50Hz Protection Level IP40 Advantage High Precision Transport Package Seaworthy Specification 50 m L X 11 m W Trademark ZeYe Origin China HS Code 84623120 Production Capacity 70

Product Description

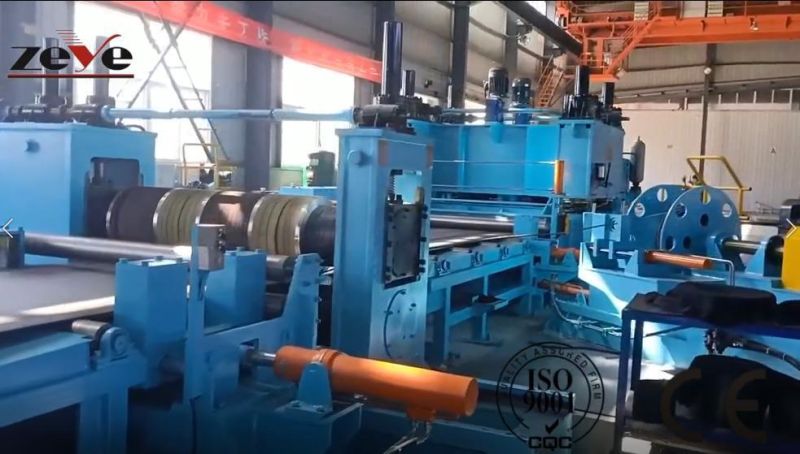

Slitting and Cut to length line ZSCL series
Slitting and Cut to length line is mainly used for jobs like uncoiling, leveling, slittiing, measuring the length, cutting and stacking.
Application Material: cold rolled or hot rolled plate, electrolytic galvanized plate, hot dip galvanized plate, color-coated plate, stainless steel plate, aluminum plate, cooper plate etc.


Main Units

1	Entry coil car	1 set
2	Uncoiler	1 set
3	Feeding device	1 set
4	Pre- leveler	1set
5	Looper	1 set
6	Side guide	1 set
7	Slitter Machine	1 set
8	Scrap Rewinder	2 sets
9	Transition Roll Table	1 set
10	Side Guide	1 set
11	Precision Leveler	1 set
12	Tail Plate Pinch Machine	1 set
13	Hydraulic Shear Machine	1 set
14	Stacker	1 set

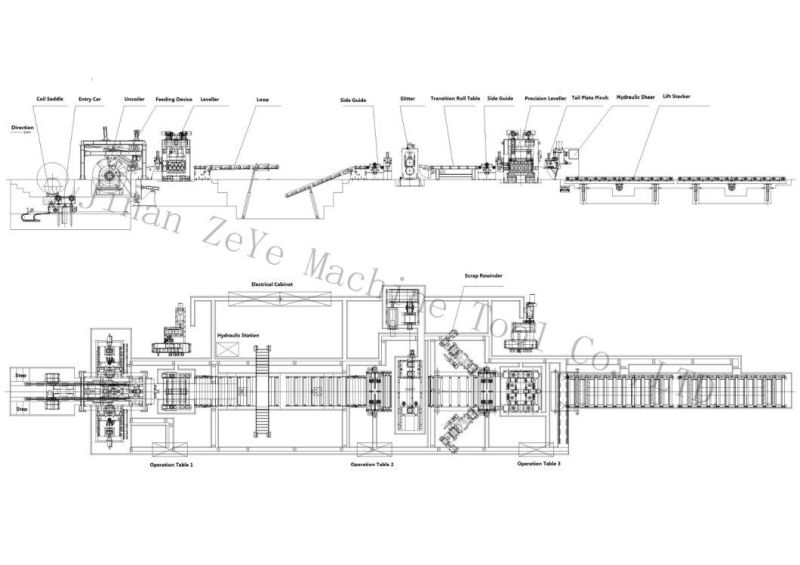

Layout of Cut to Length Line


Main Technical Parameters

Model	ZSCL-6	ZSCL-8	ZSCL-12	ZSCL-16	ZSCL-20/25
Material thickness	1.5-6.0mm	2-8 mm	3-12 mm	4-16 mm	6-20/25 mm
Material width	800-2000 mm	800-2000 mm	800-2000 mm	800-2200 mm	800-2500 mm
Slitting quantity	30	25	25	20	20
Width accuracy	±0.1 mm	±0.1 mm	±0.2 mm	±0.2 mm	±0.2 mm
Cutting burr	<3%	<3%	<3%	<3%	<3%
Finished length	1000-6000 mm	1000-8000 mm	100-12000 mm	2000-14000 mm	2000-14000 mm
Length accuracy	±0.1 mm	±0.1 mm	±0.1 mm	±0.1 mm	±0.1 mm
Diagonal accuracy	±1.0 mm	±1.0 mm	±1.5 mm	±1.5 mm	±1.5 mm
Leveling accuracy	<1 mm/m2	<1 mm/m2	<1.5 mm/m2	<1.5 mm/m2	<1.5 mm/m2
Line speed	50 m/min	40 m/min	40 m/min	40 m/min	30 m/min
Coil weight	20,30 t	20,30 t	20,35 t	20,35 t	20,35 t

Our advantages
1.Reasonable structure, convenient to adjust, high precision and high efficiency.

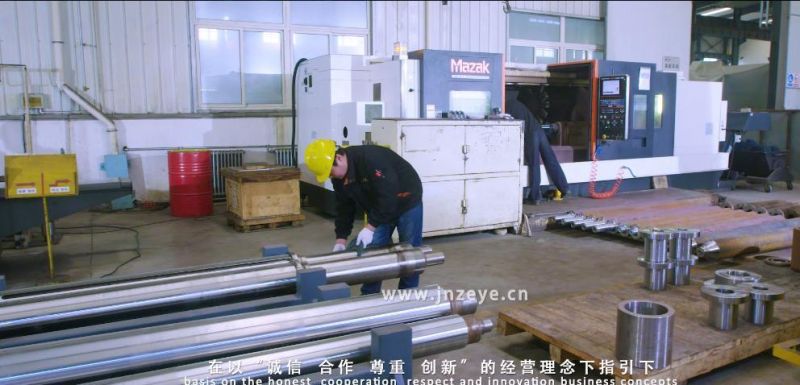

2.Japan MAZAK, Spain CORREA CNC etc.the world most advanced high precision processing equipment to ensure to produce out the high precision parts.

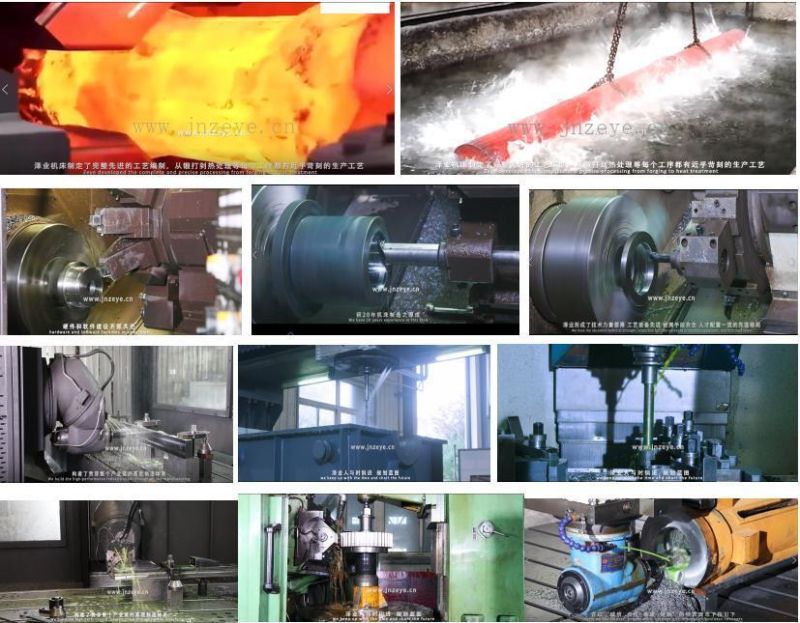

3. Every part has been done it's own complete technology process, such as forge, rough machined,  heat treatment, cooling, burring, tempering,  finish turning , milling, drill, thread tapping, match pin, surface quenching,coat the anti-rust oil, fine grinding, test ,entry warehouse, which ensure every part meets it's the best performance

4. Strictly inspection during production and assembly, which in order to ensure every parts to be used is qualified.
Part of our customers
Due to enjoy the high reputation of our shearing products, we have supply our cutting lines to POSCO, BAOSTELL, MA STEEL,ANSTEEL, DELONG STEE, SHAN STEEL,SINOTRUCK, CRRC, CHERY, CHANGFENG MOTOR, HRA ,OBON,SIEMENS, MCC, BOSCH, SANDEN etc. famous companies.



Company introduction

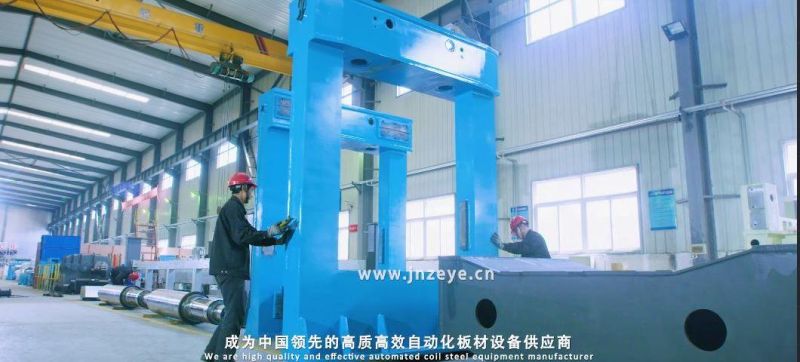

Shandong Zetian CNC Machine Tool Co., Ltd (short for Zetian )and Jinan ZeYe Machine Tool Co., Ltd (short for ZeYe) are brother enterprises. Zetian  is for import and export business,  ZeYe  is one professional manufactory, was founded in 1997 in Jinan city, Shandong Province, China. ZeYe is mainly engaged in developing ,manufacturing and sales of Cut to Length Line, Slitting Line, Rotary Shear, Moving Shear, Slitting and Cut to Length Combined Line, Leveling Machine. Our products are widely used in plate processing, household appliance, automobiles, pipe mill, mechanical, hardware etc. industries. It could be application for processing cold and hot rolled steel, carbon steel, galvanized steel, silicon steel, tinplate, stainless steel, pre-painted steel,
aluminum, copper and other metals.

We have one professional technical team and after sales service team, we are ready to serve you at all the time.

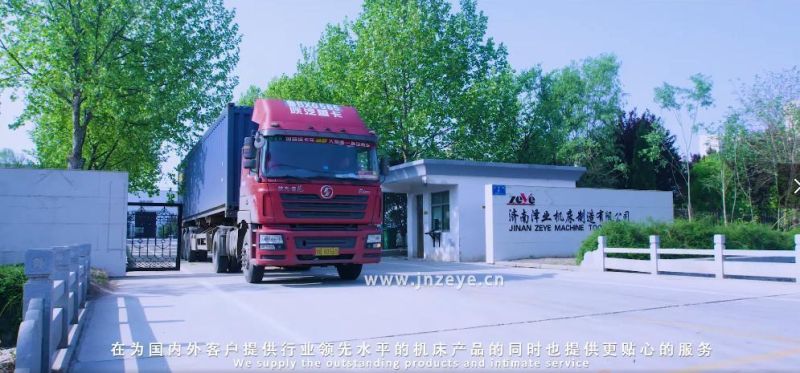

Welcome to visit our factory.



FAQ
Q: Could you produce the shear line as per our specific requirements?
A: Yes, we are a professional manufacturer specialized in automatic shearing line
for 23 years, we have a strong design & technical team,  we can design and manufacture as your requirements.

Q: How to get an accurate quotation ?
A: Please provide us the detailed requirements, such as coil weight, material, width, shearing length, processing precision etc.


Q: What's the MOQ, warranty... ...
A: MOQ: 1 set.
Warranty: 12 months after the equipment run normally .
