Multi-Straps Nose Wire Cutting Machine Mask Earloop Cutting Machine

Suzhou Crown Electronic Technology Co., Ltd.
  • Condition：New
  • Certification：CE
  • Automation：Semi-Automatic
  • Suitable for：Plastic, Rubber
  • Model：Wl-812
  • Cutting Length：1-9999mm

Base Info

  • Model NO.：Nose Wire Cutting Machine
  • Max. Cutting Width：120mm
  • Cutting Speed：100-120 PCS,Min
  • Voltage：110V,220V 50Hz,60Hz
  • Rated Power：0.5kw
  • Max.Temperature of Cutter：350 Degree
  • Weigth：26kg
  • Dimensions：56*42*40cm
  • Transport Package：Carton
  • Specification：56*42*40cm
  • Trademark：Crown
  • Origin：China, Jiangsu
  • HS Code：8451500000
  • Production Capacity：100-600 PCS,Min

Description

Basic Info.

Model NO. Nose Wire Cutting Machine Max. Cutting Width 120mm Cutting Speed 100-120 PCS/Min Voltage 110V/220V 50Hz/60Hz Rated Power 0.5kw Max.Temperature of Cutter 350 Degree Weigth 26kg Dimensions 56*42*40cm Transport Package Carton Specification 56*42*40cm Trademark Crown Origin China, Jiangsu HS Code 8451500000 Production Capacity 100-600 PCS/Min

Product Description

 WL-102/ 812 Automatic Face Mask Earband and Nose Wire Multi-Straps Cutting Machine mask ear-loop cutting machine  Mask making machine

Introdution:

This is an affordable hot and cold tape cutting machine. It features automatic cutting, simple operation, wide range of application, and high cutting quality.

  • High speed: 100-120pcs/min (Length=50mm)

  • High accuracy: stepper motor guarantees high accuracy

  • The cut surface is flat: the hot knife can heat seal the cut surface of the color ribbon and the light and thin textile belt, and the sealing is smooth and free of burrs.

  • The blade is made of imported high-quality steel and has a long service life.

  • Automatic operation: just set the length and number of cuts you need, and the rest of the work is done automatically.

  • Automatic pause: Once the material is used up, it will automatically stop working. Bouncer automatic alarm

  • Memory function: automatically store the cut length, cut quantity and cut speed before shutdown

  • File storage: 9 files can be stored, easy to extract at any time, reducing setup time


Technique parameter:

ModelWL-102
Cutting length1-9999mm
Max. cutting width100mm
Cutting speed100-120 pcs/min
Weight26kg
Voltage110V/220V 50Hz/60Hz
Rated power0.5kw
Max.temperature of cutter350ºC
Packing size450*350*350mm

ModelWL-812
Cutting length1-9999mm
Max.cutting width120mm
Cutting speed100-120 pcs/min
Weight26 KG
Voltage110V/220V 50/60Hz
Rated Power0.5 KW
Knife temperature350°C
Dimension450*350*350mm

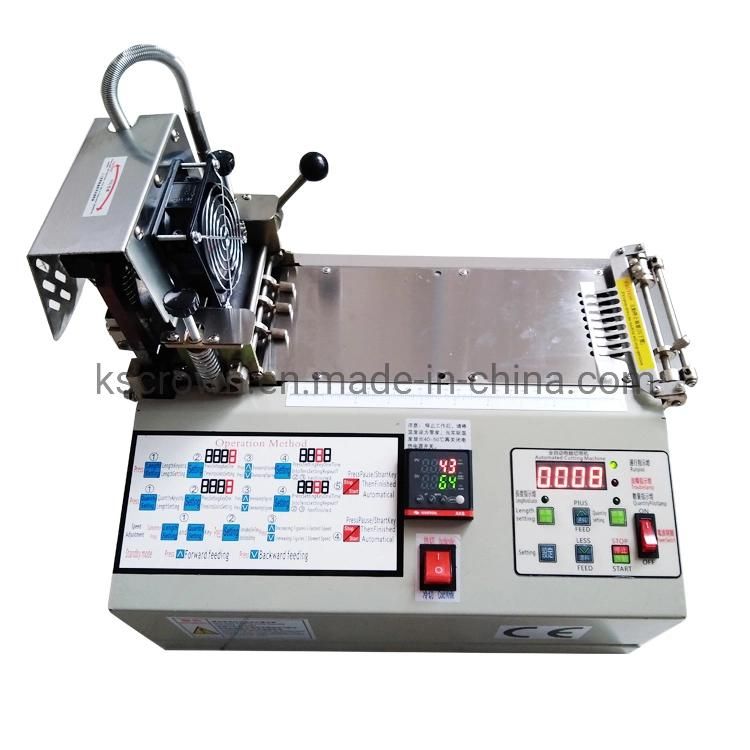

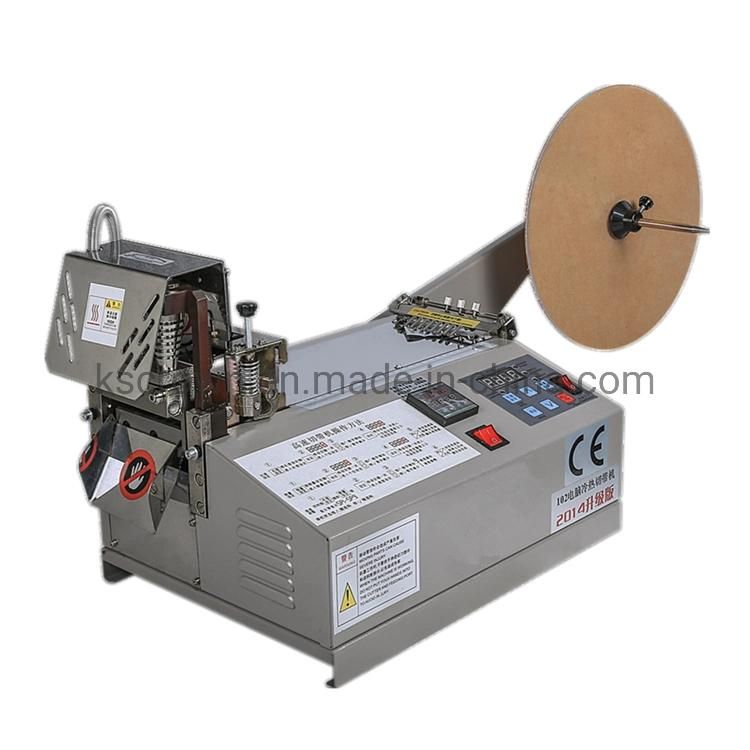

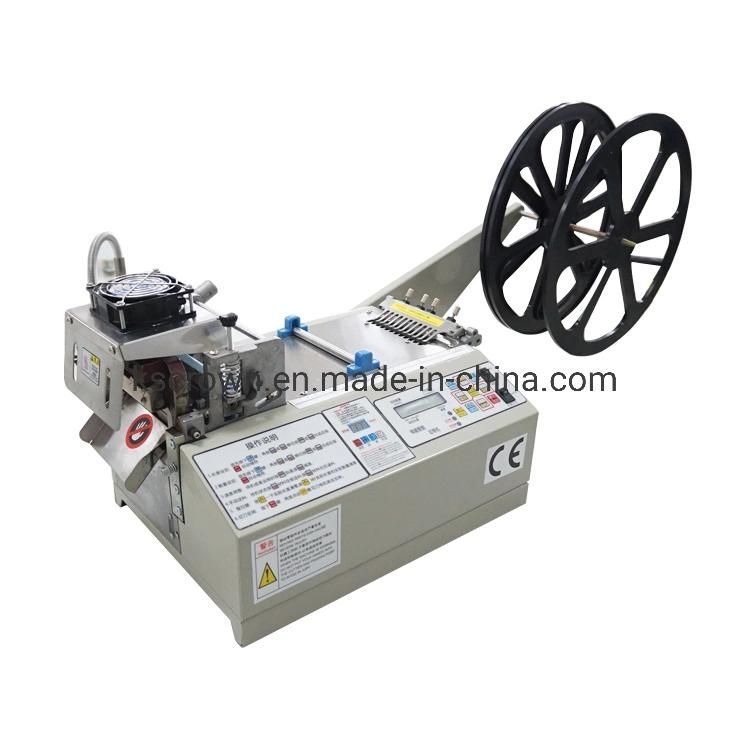

Product show:

Multi-Straps Nose Wire Cutting Machine Mask Earloop Cutting Machine

Multi-Straps Nose Wire Cutting Machine Mask Earloop Cutting Machine
Multi-Straps Nose Wire Cutting Machine Mask Earloop Cutting Machine
Multi-Straps Nose Wire Cutting Machine Mask Earloop Cutting Machine


Multi-Straps Nose Wire Cutting Machine Mask Earloop Cutting Machine

Machine processing tape samples:
Multi-Straps Nose Wire Cutting Machine Mask Earloop Cutting Machine

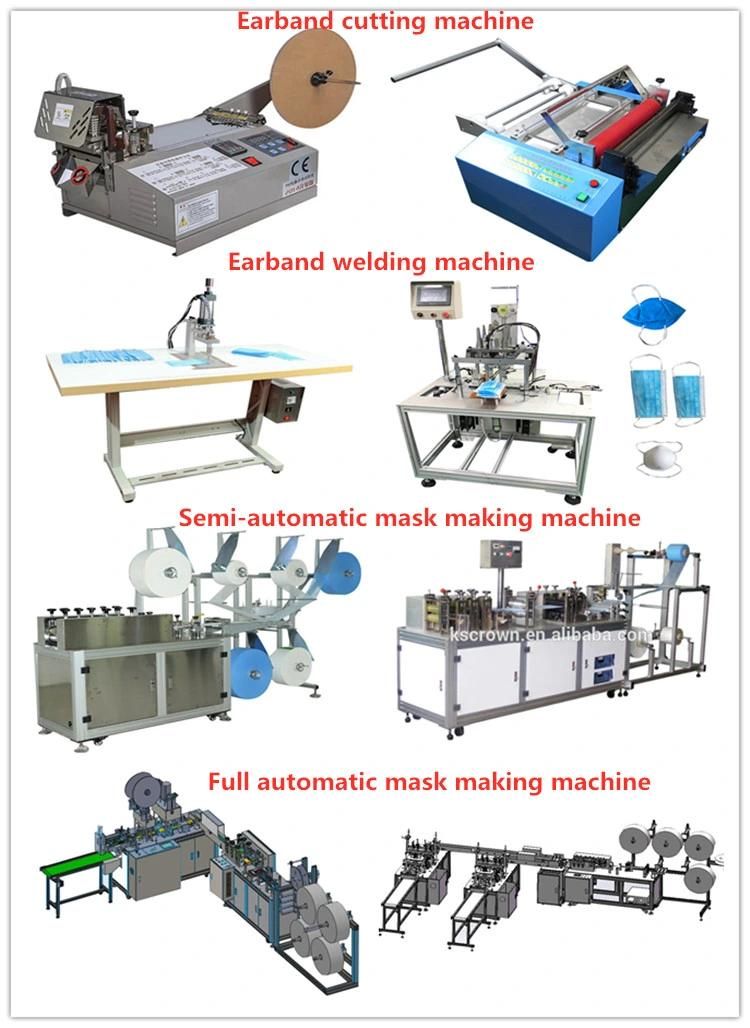

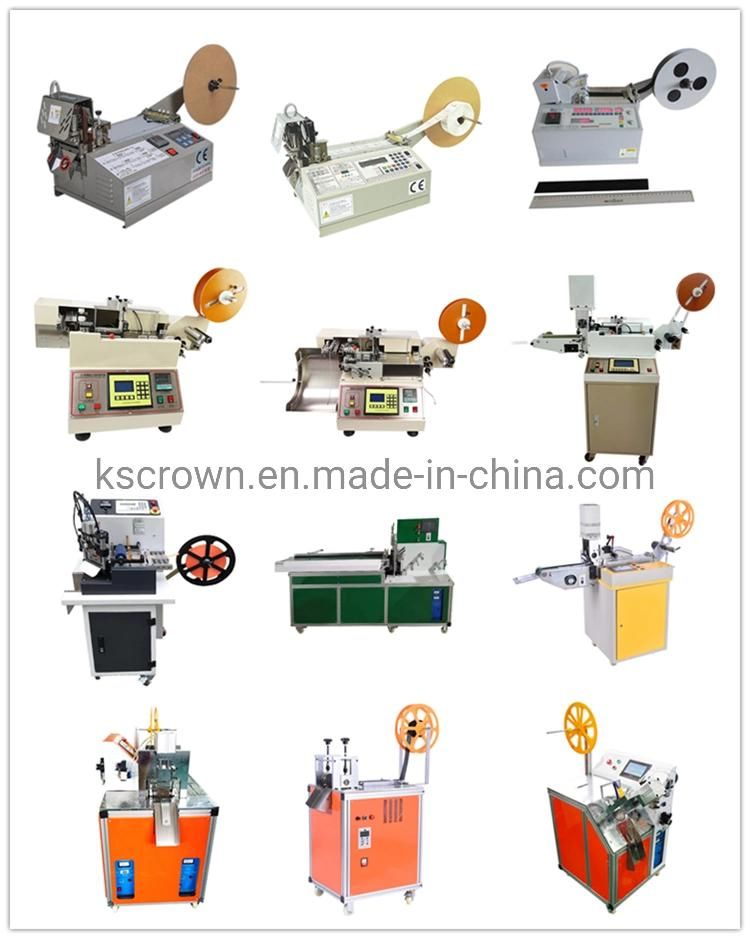

Related products:
Multi-Straps Nose Wire Cutting Machine Mask Earloop Cutting Machine

Multi-Straps Nose Wire Cutting Machine Mask Earloop Cutting Machine

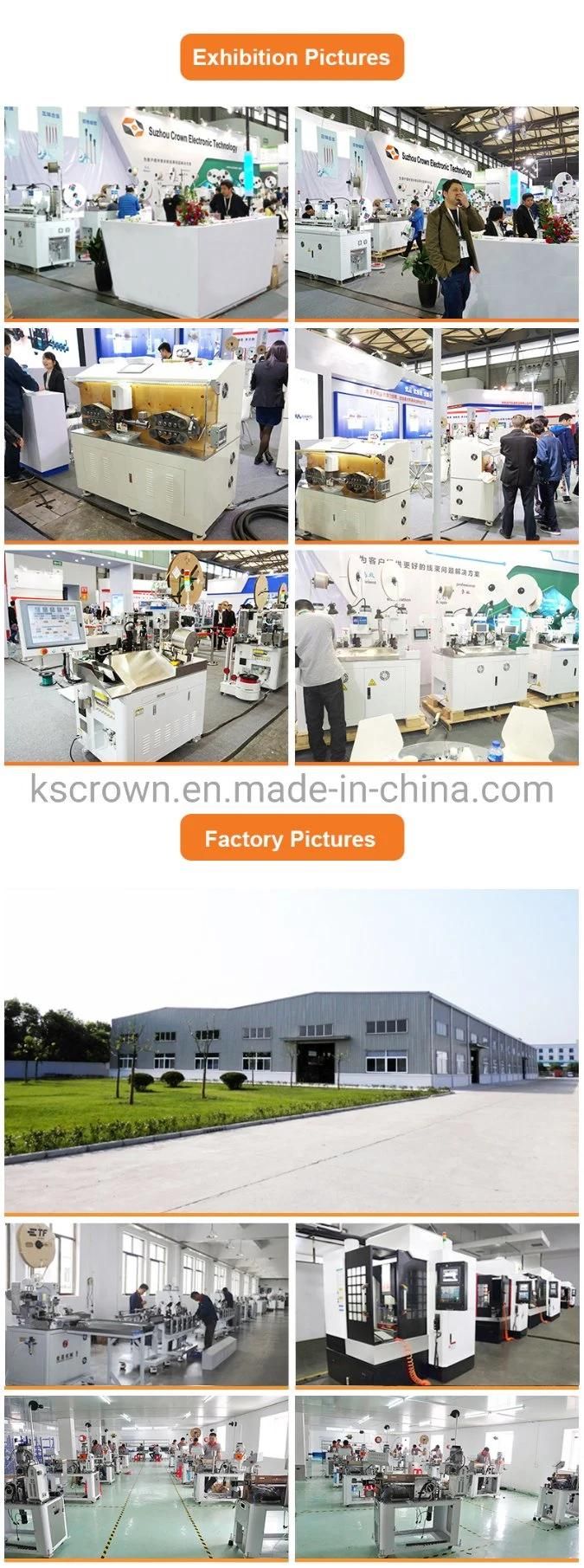

Company information:

Multi-Straps Nose Wire Cutting Machine Mask Earloop Cutting Machine
Certificate:
Multi-Straps Nose Wire Cutting Machine Mask Earloop Cutting Machine

Contact:

Pls contact Suzhou Crown Alice for price inquiry or any other questions/doubt.
