200t 3200 Full CNC Press Brake with 8+1 Axes

Maanshan Middle Asia Machine Tools Manufacture Co., Ltd.
  • Waterproof Rating：IPX-8
  • Warranty：1-year
  • Condition：New
  • Certification：ISO 9001:2008, Ce
  • Automation：Automatic
  • Type：Press Brake

Base Info

  • Worktable Length：5000mm
  • Controller System：Delem Da52s
  • Hydraulic System：Germany Bosch
  • Application：Machinery & Hardware
  • Type for Fold-Bending Machine：CNC Fold-Bend Machine
  • Transport Package：Plastic Cover
  • Specification：CE STANDARD
  • Trademark：ZYMT
  • Origin：China
  • HS Code：8462219000
  • Production Capacity：3000 Sets,Year

Description

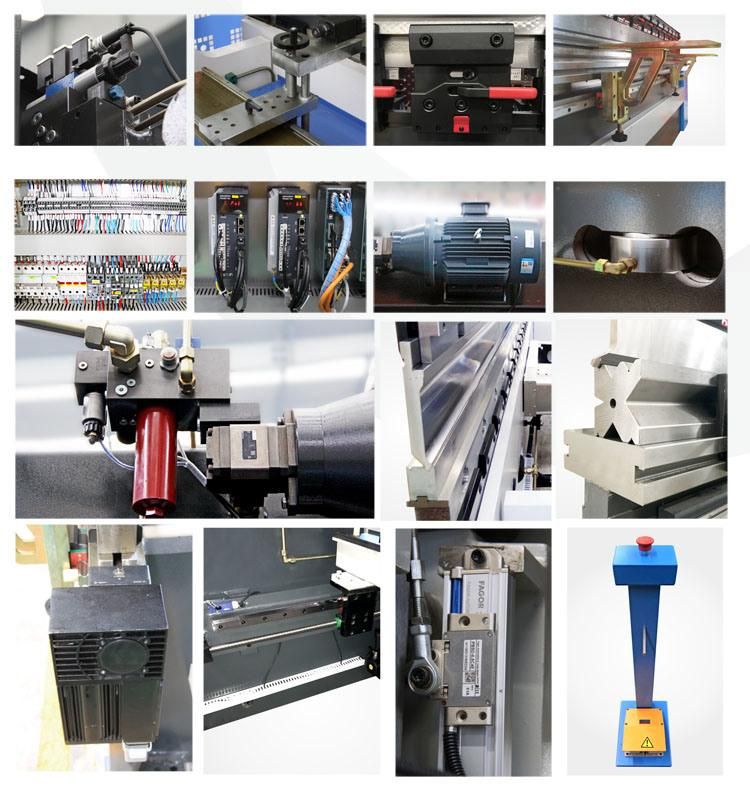

Parts NameBrandBrand LocationControl SystemDELEM DA52SHollandServo motor and driveEstunNanjing ChinaHydraulic SystemHOERBGER/BOSCHGermanyBall bearing lead screwHIWINTaiwanStraight-line guideHIWINTaiwanConnectorEMBGermanySeal ringFIETZ/VALQUAGermany/JapanRaster RulerHeidemhainGermanyMain electrical elemeentsTE/OMROM/SIEMENSStandard axesY1,Y2,X and V(V for crowing table)200t 3200 Full CNC Press Brake with 8+1 Axes
200t 3200 Full CNC Press Brake with 8+1 Axes

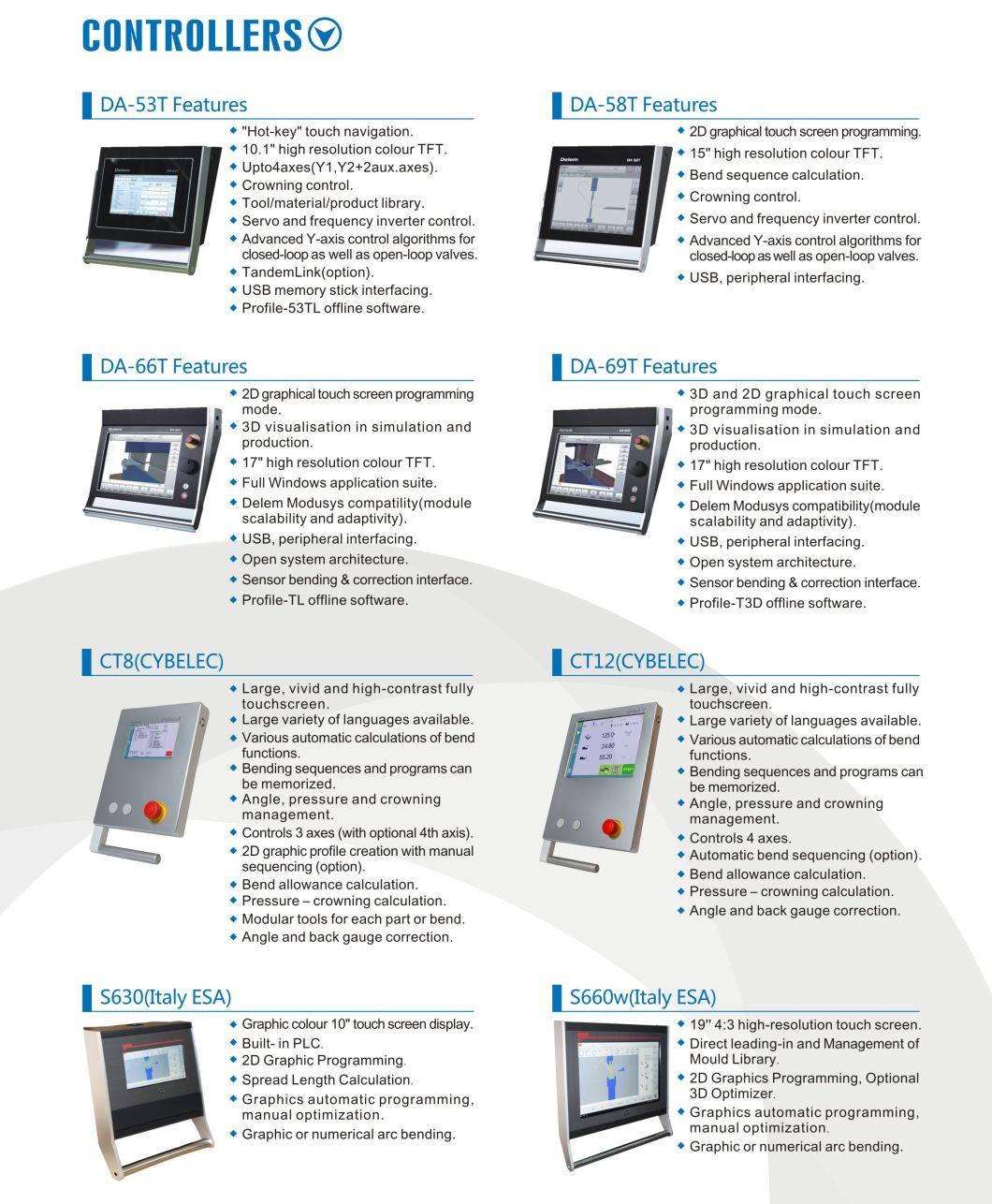

Optional:
1.DELEM DA56
2.DELEM DA66T
3.R/Z1/Z2-axis
4.Laser beam
5.Light beam

ZYB Series Technical Parameters:TypeNominal Force
(KN)Worktable Length
(mm)Vertical Distance
(mm)Throat Depth
(mm)Stroke
(mm)Max Open
(mm)Power
(kw)X-travel
(mm)X-speed63T/2500630250019003501703805.5



500






200mm/s100T/32001000320027004002004207.5125T/320012503200270040020042011160T/320016003200270040020042011200T/320020003200270040020042015250T/320025003200270040020042015300T/320030003200270040020042022400T/400040004000350040032042030500T/600050006000490050032060037


800600T/600060006000490050032060045800T/600080006000490060040060055800T/8000800080005900600400600551000T/6000100001000049006004006002×371000T/8000100001000069006004006002×371000T/1000100001000080006004006002×37
Company Introduction:
1.Maanshan Middle Asia Machine Tools Manufacture Co.,Ltd founded in 2001.
2.Total number of emploee: 500
3.All kinds of sophisticated equipment more than 100 sets.
4.Production plant area:60,000.
5.Whole factory is controlled by ERP-Enterprise Resource Plan.
6.CE/SGS/ISO9001 certification.

We are producing below ranges of machines:
1.NC/CNC Press Brake
2.NC/CNC Shearing Machine
3,Rolling Machine
4.Iron Worker
5.Power Press
6.Hydraulic Press

If you have any demand, please contact me directly, or browse through our web site: leolivia.en.made-in-china.com
