• Model NO.：YH 2015
• Production Capacity：50sets,Month

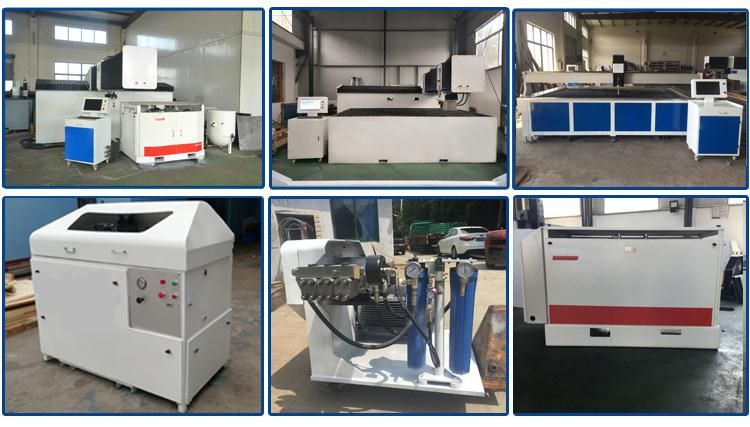

cutting tablemodel13132015302040206020customized sizestructuregantry water cutting platform/cantilever series cutting platformtravelX Axis1300mm2000mm3000mm4000mm6000mm  Y Axis1300mm1500mm2000mm2000mm2000mm speedMax.move speed (x axis and y axis)6000mm/minMax.move speed (z axis)1000mm/minAccuracy Positing Accuracy0.127mmRepeat Accuracy±0.076mmWater tank maximum Loading Capacity300Kg/m2Cutting head

3 axis / 5 axis

Movement : Linear motion/Rotary motion

cnc controller



15 inch LCD montior

Support DXF and NC code file

Software: Windows 7

Resistance of the shoch and electro-magntic

the key function

Forward & Backward processing function

Even pace control function

Small arcs speed auto processing function

Circle processing function

Partial and smooth processing modes

aabrasive feeder

Max. inlet air pressure : 0.2-0.4 Mpa

Min. inlet air flow:0.028m3/min

Abrasive capacity:170 L

features

Air valve to prevent jams and breakages

Auto control with CNC auxiliary function

Self sealing

Slightly adjust the FLOW

intensifier pump

Reted power : 50HP (37 KW)

Max.pressure : 60000psi (4137 bar)

Control voltage and cuttent : 24DC,10AMPS

Ambient temperature : 5-40 ºC

Fuel tank capacity :114L

Cooling flow : 11.4L/MIN

Attenuation : 1L

Long : 1473 MM

Width : 1205 MM

High : 1056MM

direct drive pump

Reted power : 30HP (22KW)

Output pressure : 55000psi

Max.pressure : 60000psi (4137 bar)

Air: 80-120psi

Operating voltage and power:210-240/360-420V 50HZ

Ambient temperature : 5-40 ºC

Min.inlet water : 60psi 1 gallon/min.

Pump speed: 720 rmp

Fuel tank capacity : 2.6 L

Weight :700kg

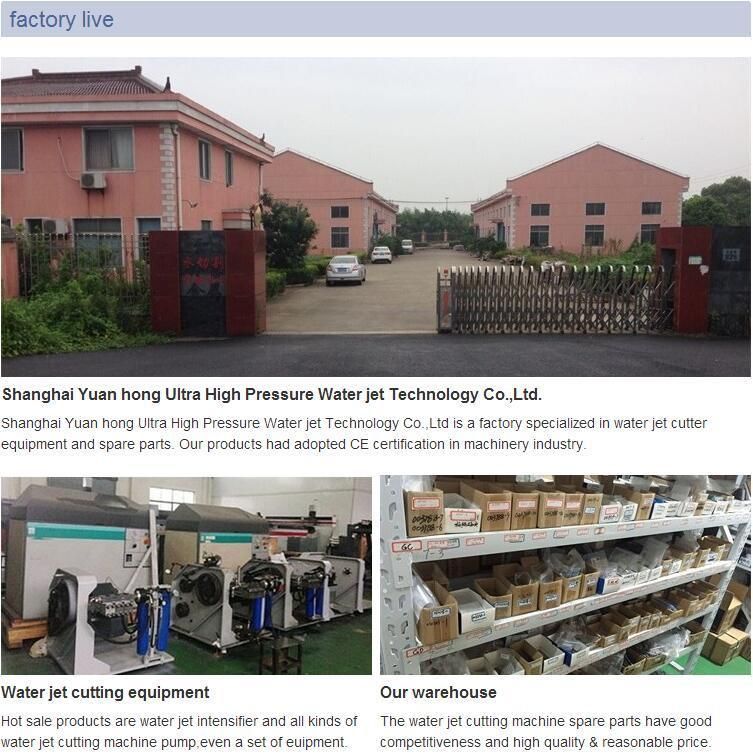

  Shanghai yuanhong ultra-high pressure water jet technology co.,ltd is a professional engaged in ultra-high pressure water jet equipment research and development,produuction,sales,service as one of the water jet equipment suppliers.

    The company brand "Water Jet"CNC bed,for several years in product research and development,the high precision electronicequipment manufacturing,machining experience,in view of the present water jeet status quo of technique and technology of the nc machine tools is uneven,its study unceasingly,improving and perfecting,successfully development the microelectronics industry water jet nc machine tool,and the automatic registration of the world's most advanced vision platform technology application on the water cutting equipment,makes the water jet "Water Jet " cutting equipment precision,efficiency and cutting property are better.

    Yuanhong ultra-high pressure water jet technlogy co.,ltd cooprerate with many world famous companies,including vibration hong and Taiwan,the United States of silver PSP(Puget Sound Precision),the company in adition to the water cut of all products,also the AD hoc ultra high pressure r&d center,hired former domestic and foreign well-known water jet cutting company technology personnel as the research and development personnel, and hired well-know Dr Materials of colleges and universities to provide technical support, including Beijing university of aeronautics and astronautics and so on.
    The company will in line with "customer first, quality first" the idea, the full use of the various water jet essence, according to the customer need to configure the best solutions and services for the user.

    We are a high-tech enterprise with 30 technical patents, including (CE / ISO 9001), and the Chinese Academy of Sciences, the boss had a world-class company engineers engaged in more than 10 years, has a wealth of experience, for the product we maintain lifelong high-pressure parts (Except wearing parts), the company sold more than 1680 kinds of products, we have a big enough advantage compared with the market.
