• Model NO.：HX-360BFQ
• Certification：CE
• Automation：Automatic
• Suitable for：Plastic, Rubber, Copper, Aluminum, Alloy
• Model：Hx-360bfq
• Voltage：220V+,-10%
• Power：1.5HP
• N. W.：340kg
• G. W.：360kg
• Cutting Length：0.1~9999.9mm
• Cutting Width：1~360mm
• Measurement：980X1450X1070mm
• Manufacture Experience：30years
• Export Experience：10years
• Type for Cutting Machine：Automatic Cutting Machine
• Type for Fold-Bending Machine：Electric Cutting
• Transport Package：Wooden Case
• Specification：360mm
• Trademark：Hexin
• Origin：Kunsha, China
• HS Code：84411000
• Production Capacity：1000PCS,Month
• Package size per unit product：120.00cm * 170.00cm * 120.00cm
• Gross weight per unit product：300.000kg

Overview Product Description

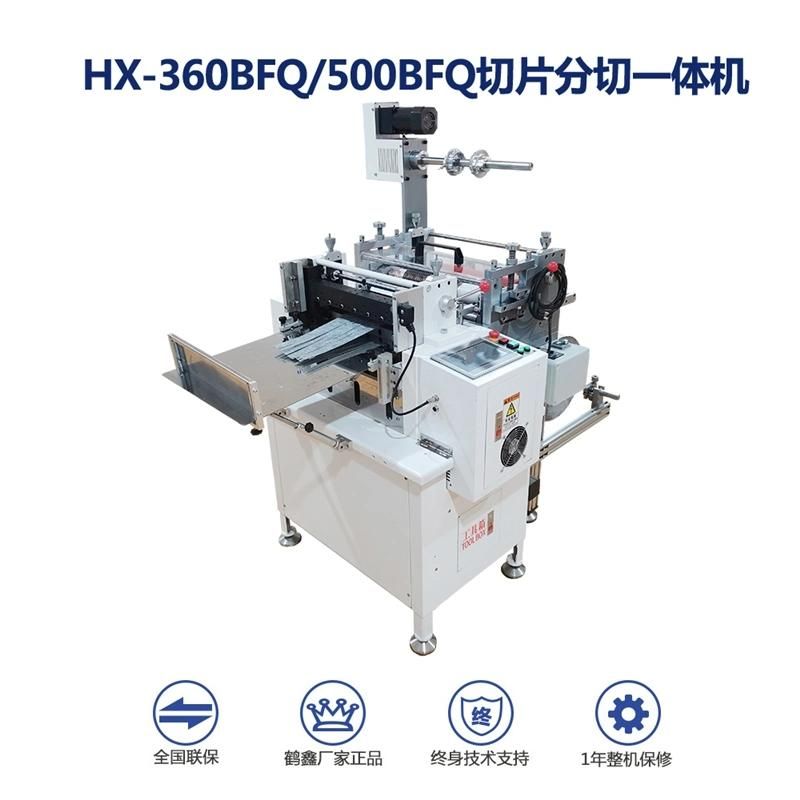

Automatic Detect Printing Mark Thread Knitted Hat Fabric Cutting Machine PVC Paper Roll to Sheet Cross Cutter Machine

Features:
This machine employs the human-machine interface + PLC control system, and adds imported photoelectric and suction devices to find some cut, prevent cumulative errors, improve croping efficiency, high precision, less loss, and simple operation.
Uses:
Applicable to post-printing products, conductive cloth, foam, diffusion sheet, reflection film, double-sided tape, nickel, PET, PC, PE insulation paper, copper / aluminum foil, release paper, various adhesive tapes, etc. cut.

Feature



Features:

1. The max width: 360mm
2. Tolerence: 0.05mm, Precision: 0.1mm
3. Material thickness: 0.5mm-15mm
4. Kiss cut or cut through available
5. Under CE and ISO Certifications
6. Warranty for machine: 12months
7. Delivery time: 1-3days
8. Cut through for standard machine
9. Kiss cut is for optional

Characteristics:

1. This machine employs man-machine interface + PLC system equipped with pneumatic pushing device.
2. For half cutoff with multi-cut, full cutoff with one-cut.
3. Five different cutting length can be set.
4. Different cutting quantity and circulation time also can be set to improve cutting efficiency.
5. The cutting length is accurate.
6. Operation is easy.
7. Waste rate is low.
8. Manufacturing experience: 30 years
9. Export experience: 10 years

Application:

Sizing cutting for conductive fabric, foam, diffuser, reflector film, double-sided adhesive tape, nickel plate, PET, PC, PE insulation paper copper /aluminum foil and all kinds of adhesive tapes.

After-service:

1. Warranty for machines is 12 months
2. A promptly reply within 24 hours

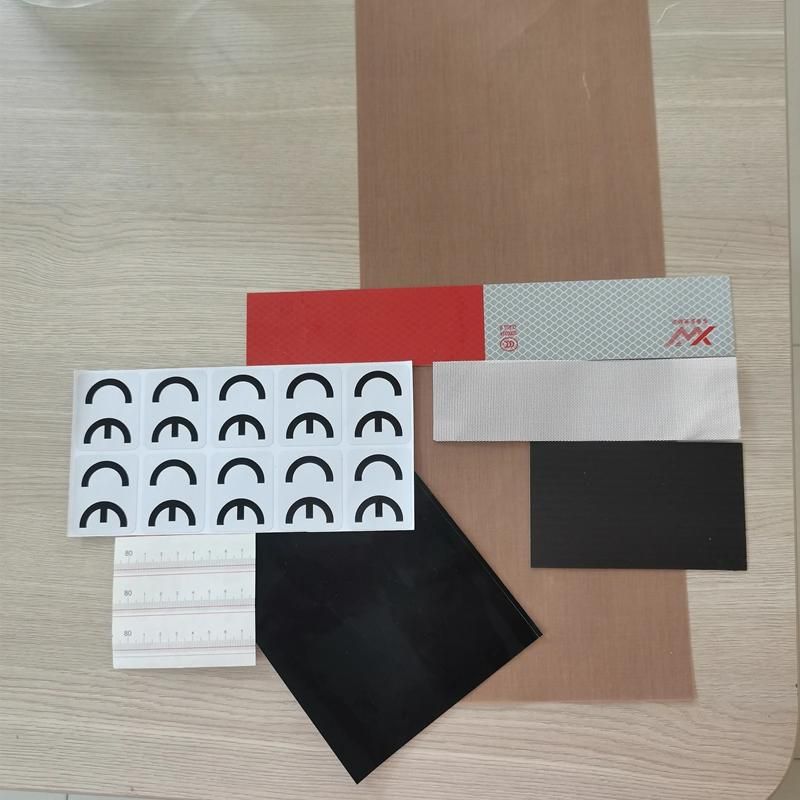

3. Free usage training before delivering machines in factory.Sample



Packaging & Shipping



Exhibition

Company Profile

We are a team of industry professionals with strong backgrounds in cutting, die cutting,slitting, laminating and rolling. Other related machines in our fields can be customized based on your specific requirements.
Kunshan Hexin Precise Machinery Co.ltd is located in Kunshan city,Jiangsu province. We are near Shanghai,40 minutes away from Shanghai Hongqiao airport by car and 18 minutes by high speed train. Established in 2007, we have been dedicated on converting machines which are used before and after printing for over 10 years.
Our belief is "people-oriented, technology-first, integrity-centered and brand idea" to provide customers reliable products,
perfect service.Our products are widely applied in laminating, slitting and die cutting for shield materials, sticky materials,
insulating materials, conductive materials, electronic materials. Sizing cutting for strings, belts, rolls in bag line, shoe and
cap line and plastic and rubber line.
