• Model NO.：HPB 110T3200
• Certification：ISO 9001:2000, CE, TUV
• Automation：Automatic
• Suitable for：Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel, Mild Steel, Galvanized Sheet
• Type：Press Brake
• CNC System：Delem Da53t
• Axes：Y1, Y2, R and Automatic Crowning
• Max Bending Length：3200mm
• Max Bending Thickness：10mm for 4m Sheet
• Weight：7600kg
• Backgauge：600mm Distance, Ball Screw and Linear Guide Rail
• Main Motor：Servo Motor
• Main Motor Power：7.5kw

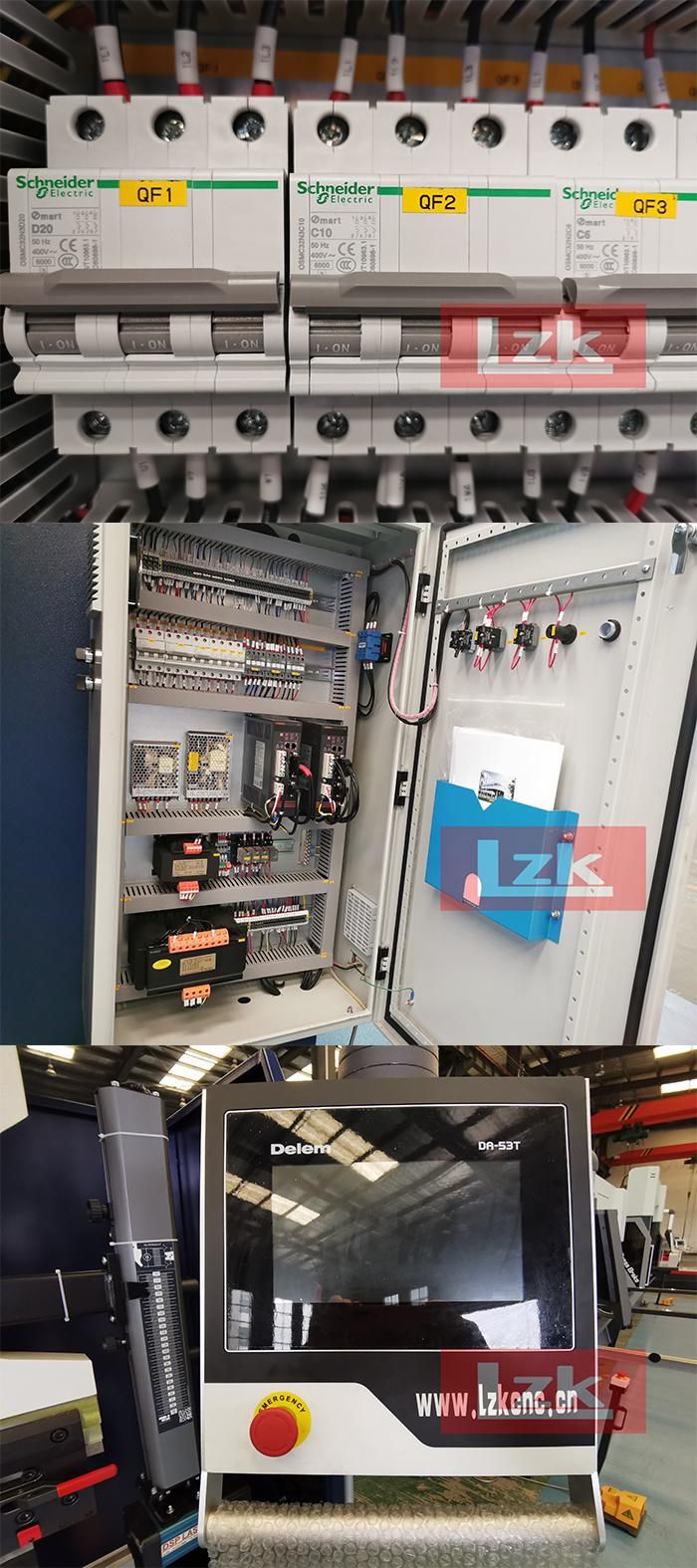

• Main Electrical Components：Schneider

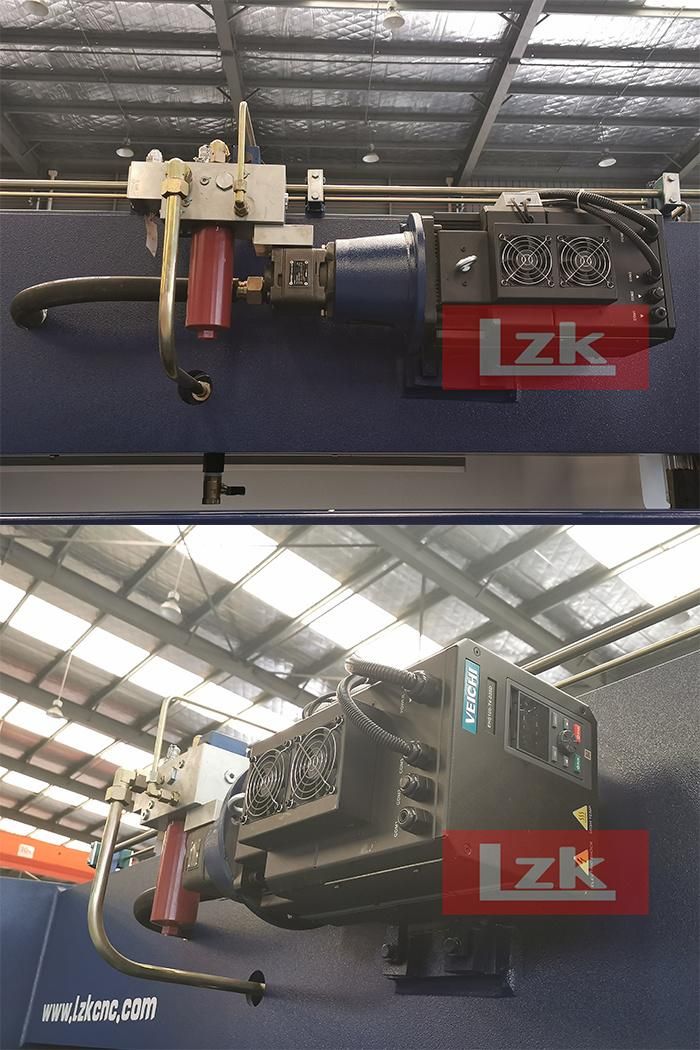

• Hydraulic System：Bosch-Rexroth
• Servo Drive：Japan Yaskawa
• Grating Ruler：Italy Givi
• Transport Package：20gp
• Specification：3800× 1750× 2580mm
• Trademark：LZK
• Origin：Maanshan, Anhui Province, China
• HS Code：8462219000
• Production Capacity：100 Sets,Month
• Package size per unit product：3800.00cm * 1750.00cm * 2580.00cm
• Gross weight per unit product：7600.000kg

The frame is made of steel structure, left and right vertical plate, worktable and pressure plate are welded into a whole structure. After welding, the internal stress is eliminated by tempering, so the whole steel is good and the stability is high.

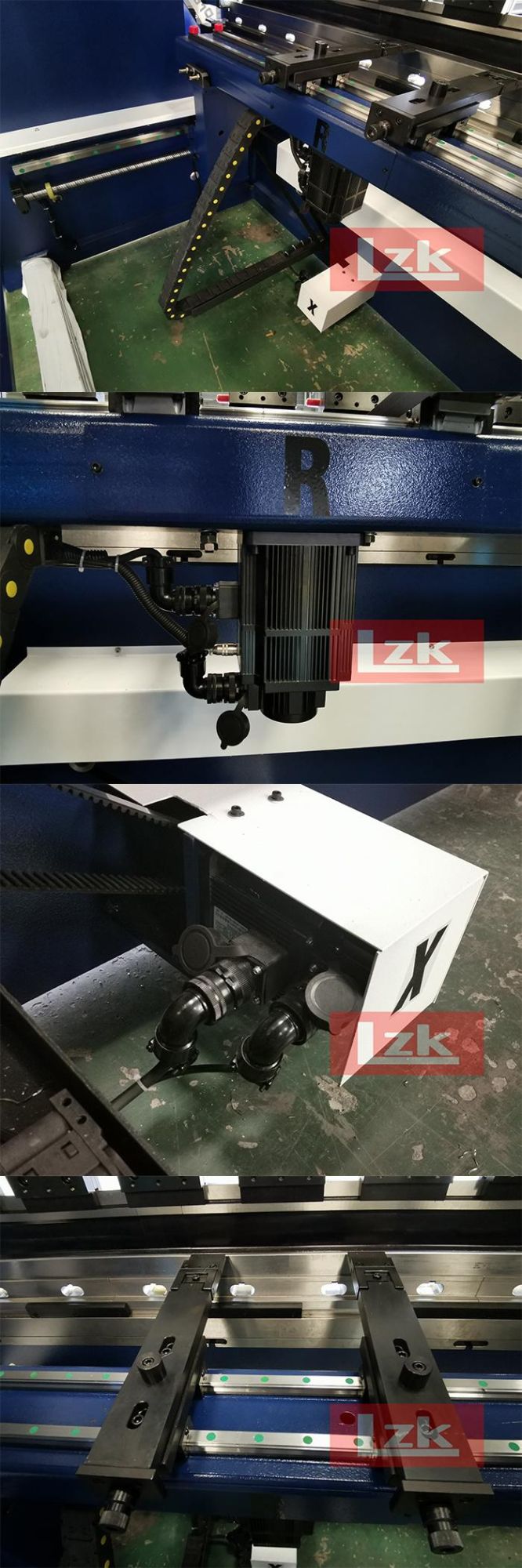

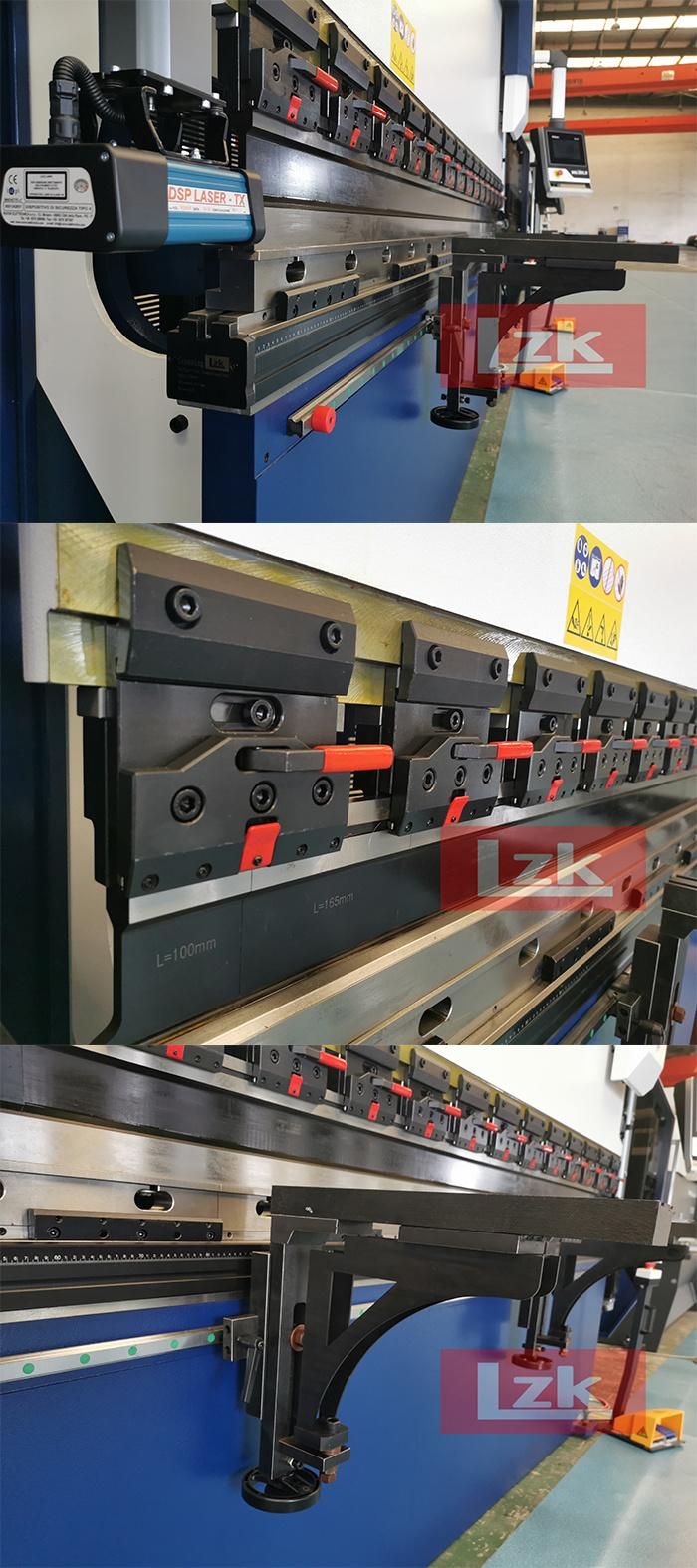

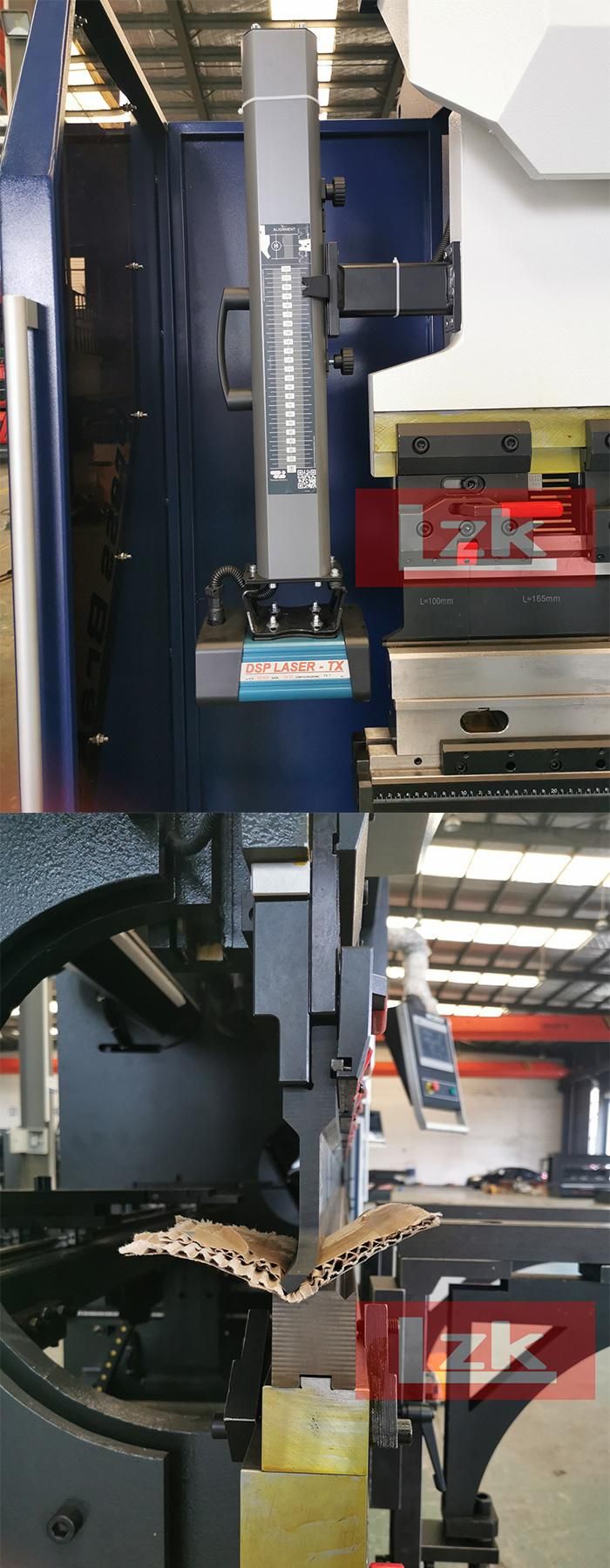

Latest high-frequency responding hydraulic control technology, faster, more efficient and accurate.Sliding front support armsQuick clampItaly DSP laser protectionOne set of tool with machine, it can also be designed according to your product drawing.Two sides with GIVI grating ruler for hign precision Y1, Y2 axesCNC mechanical compensation through system for higher straightness of bending sheetKACON footpedal Main electrical component with Schneider brandDELEM DA53T system, can be added with 2D programming. Backgauge with X, R axesX and R axes are with servo motor controlled with high position accuracy. Finger blocks move on two railsMain motor is evergy saving type servo motorLow noiseMotor stops if not bending, motor only work when bending.

Our press brakes work well in customer's workshop

German CustomerRussia Customer, manufacturer of Yacht

Customer come from different countries for cooperation and inspection
