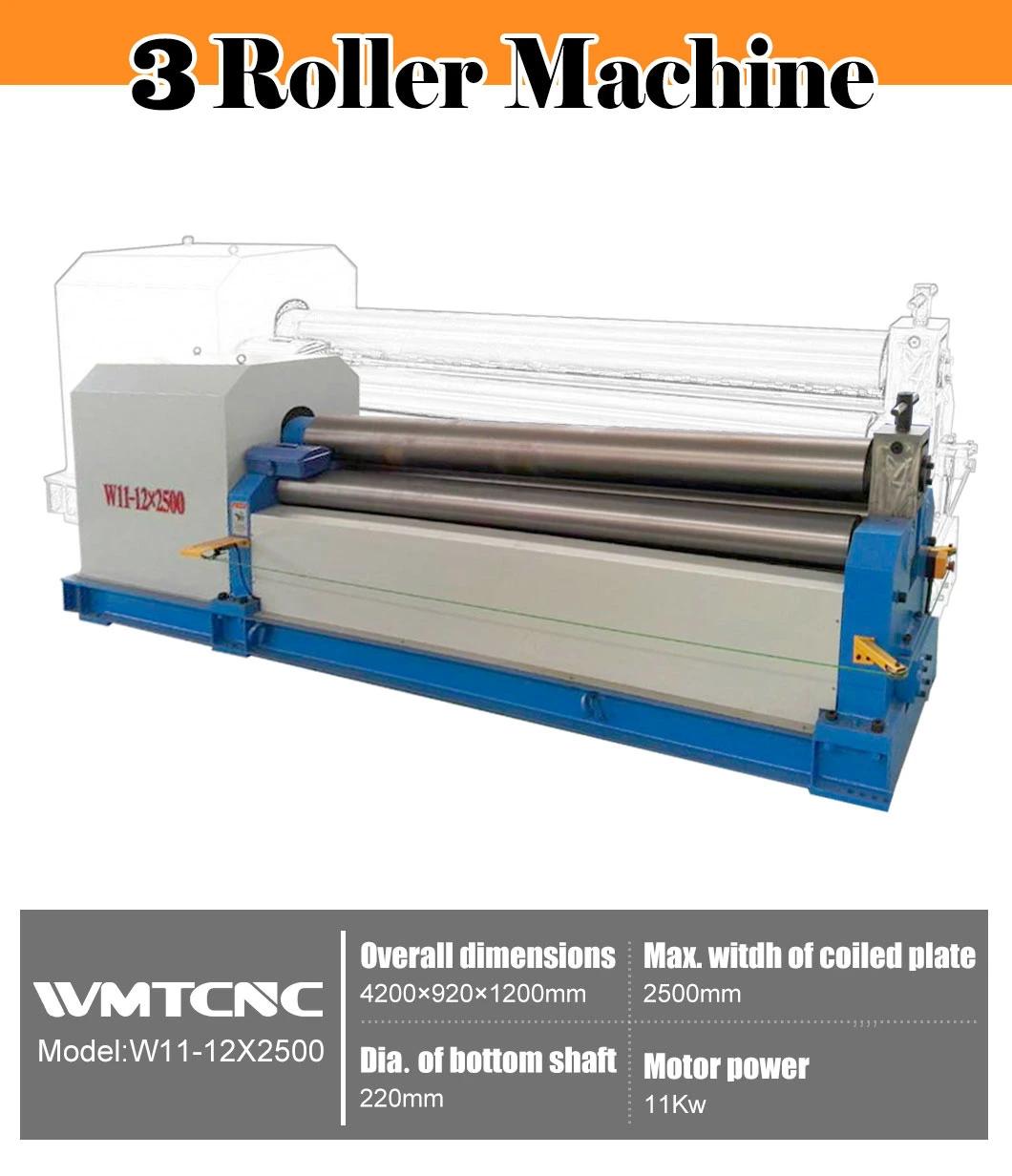

W11-12X2500 Mechanical 3-roller Symmetrical Plate Rolling Machine

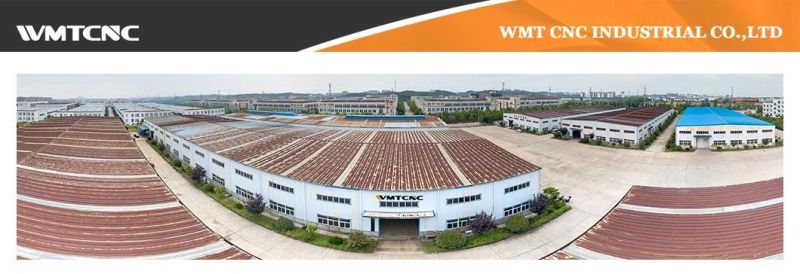

Wmt Cnc Industrial Co., Ltd.
  • Waterproof Rating：IPX-8
  • Warranty：1-year
  • Condition：New
  • Certification：RoHS, ISO 9001:2008, CE, CS
  • Automation：Semi-Automatic
  • Suitable for：Rubber, Copper, Aluminum, Carbon Steel, Stainless Steel

Base Info

  • Model NO.：W11 12x2500
  • Type：Roller-Bending Machine
  • Power：Mechanical
  • Machine：Metal Sheet Forming
  • Application：Machinery & Hardware
  • Type for Fold-Bending Machine：Electrical Bending Machine
  • Transport Package：Fumigated Exporting Standard Wooden Case
  • Specification：CE, SGS, ISO9001: 2000
  • Trademark：WMT or customized logo
  • Origin：Chizhou, Anhui, China
  • HS Code：8462299000
  • Production Capacity：100 Sets Monthly

Description

Basic Info.

Model NO. W11 12x2500 Type Roller-Bending Machine Power Mechanical Machine Metal Sheet Forming Application Machinery & Hardware Type for Fold-Bending Machine Electrical Bending Machine Transport Package Fumigated Exporting Standard Wooden Case Specification CE, SGS, ISO9001: 2000 Trademark WMT or customized logo Origin Chizhou, Anhui, China HS Code 8462299000 Production Capacity 100 Sets Monthly

Product Description

W11-12X2500 Mechanical 3-roller Symmetrical Plate Rolling Machine

Main specification and machine details:


Specification		Max Thickness
of Coiled Plate		Max Width
of Coiled Plate		Yielding Limit
of Sheet Metal		Coiling
Speed		Min Full
Loading Diameter
of Coiled Plate		Diameter of
Top shaft		Diameter of
Bottom shaft		Central distance
 between Bottom
Shafts		Motor
Power		Overall dimensions
 mmmmMPam/minmmmmmmmmKwmm
W11-4×150041500245530015014018532900×720×1000
W11-6×150061500245545016016025042900×720×1000
W11-6×2000620002454.54501851702505.53650×820×1050
W11-6×3200632002454.53802401802807.54850×1100×1100
W11-8×2000820002454.54002301803005.53700×820×1050
W11-8×2500825002454.5   6002301803007.54150×1100×1100
W11-12×20001220002454.56002401802807.536500×1100×1100
W11-12×25001225002454.5600260220340114200×920×1200
W11-12×30001230002454700280250360114900×1300×1300
W11-16×20001620002454650260220340113700×920×1200
W11-16×25001625002454700300250360154400×1300×1300
W11-16×3200163200245485034028044018.55300×14000×1400
W11-20×20002020002454700280250360153900×1300×1300
W11-20×2500202500245485034028044018.54600×1400×1400
W11-25×2000252000245485033027043018.54100×1400×1400
W11-25×250025250024541200380310550225600×1550×2000
W11-30×250030250024541200400350550305760×1700×2110
W11-30×300030300024541200450390600375400×1700×2210
