Europe Standard, Electric Shearing Machine, Hydraulic Metal Cutting Machine, Hydraulic Swing Beam Shear
Henan Wadley CNC Machinery Co., Ltd.- Automation:Automatic
- Certification:CE, ISO 9001:2000
- Condition:New
- Warranty:1 Year
- Max.Shearing Thickness(:4.0mm
- Shearing Angle:2.4deg
Base Info
- Model NO.:Q11-4X1300nc
- Motor Power:4kw
- Max.Shearing Width:1300mm
- No.of Stroke:30mm
- N.W./G.W:1320,1520kg
- Back Gauge:630mm
- Transport Package:Wodden Case
- Specification:1910*116081450mm
- Trademark:WDL
- Origin:China
- HS Code:8462399000
- Production Capacity:300 Pieces ,Month
Description
Basic Info.
Model NO. Q11-4X1300nc Motor Power 4kw Max.Shearing Width 1300mm No.of Stroke 30mm N.W./G.W 1320/1520kg Back Gauge 630mm Transport Package Wodden Case Specification 1910*116081450mm Trademark WDL Origin China HS Code 8462399000 Production Capacity 300 Pieces /MonthProduct Description
1.The main performance specifications:Long-life of high quality blade
Back gauge is available to give fine adjustment
Simple construction with good appearance
Features:
1). Structured finished products,
2). Low center of gravity,
3). Sound vibration-proof performance
4). Stable property.
5). Long-life of high quality blade
6). Back gauge is available to give fine adjustment
7). Simple construction with good appearance
8). Easy to operate with lower energy consumption
9). Widely used for medium and thick steel
10).Our electric shearing machine is used to cast components and has the advantages of producing firmly structured finished products, low center of gravity, sound vibration-proof performance, uniform transmission and stable property.
11).Its capacity range is from 1300 to 2500 mm length and the maximum thickness can reach 10 mm. Our electric shearing machine is used for shearing large and medium thickness plates.
2.Product main technical parameters:
Model | Q11-4X1300NC | Q11-2x2550NC | Q11-4X2550NC |
Max.shearing thickness(mm) | 4.0 | 2.0 | 4.0 |
Max.shearing width(mm) | 1300 | 2550 | 2550 |
Shearing angle | 2.4° | 1.6° | 1.8° |
No.of stroke(per minute) | 30 | 30 | 30 |
Motor power(kw) | 4 | 4 | 7.5 |
Back gauge(mm) | 630 | 630 | 630 |
Packing size(cm) | 191X116X145 | 320x116x148 | 325X116X155 |
N.W./G.W.(kg) | 1320/1520 | 1900/2150 | 2500/2800 |

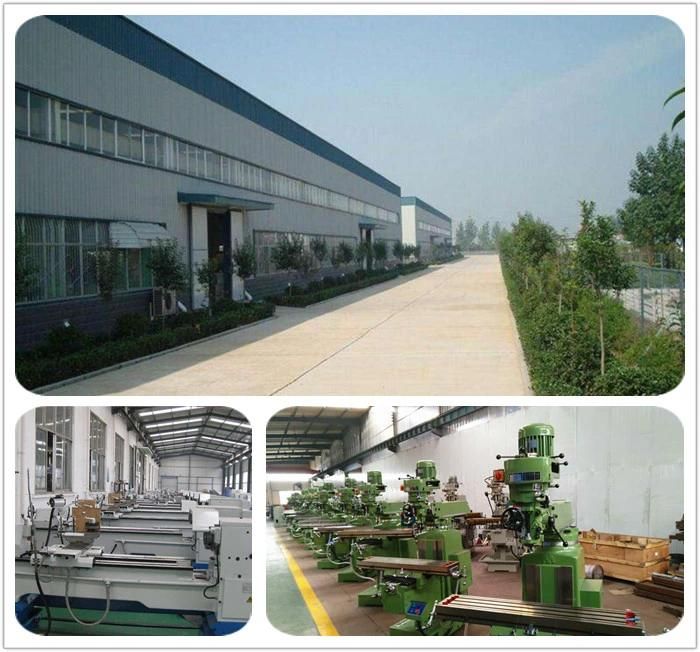

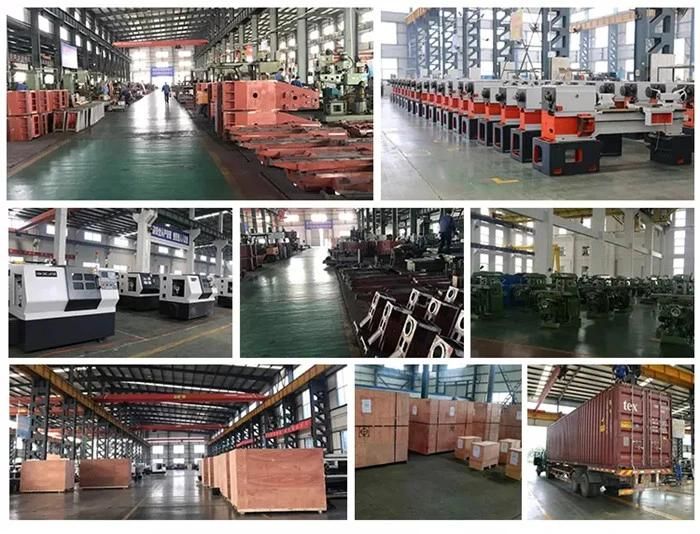

4.Our factory:
5.FAQ:
Q1.How to send my enquiry?
You can contact us by email, phone call, message (Whats APP, We Chat, Skype).
Q2.How long can I get feedback after enquiry?
We will reply you within 3 hours in working day.
Q3.Delivery time
Machines order takes 30 days after deposit payment received. Please inquiry sales.
Q4.What is the package? Is it suitable for shipment?
Machine is by waterproof cloth to covered. And be packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation.
Q5.Payment term
30% T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss the details. Welcome to inquiry sales.
Q6.Can I trust you?
Sure, we're Made in China Gold Suppliers,
Q7.How long is the warranty for machines?
Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing.
Q8.Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
