• Model NO.：GW20,25
• Name：Stirrup Bender,Steel Bar Bending Machine,Steel Be
• Working Speed：25-30times,Min
• Bending Diameter：4-25mm
• Motor Power：2.2-3kw
• Weight：120-150kg
• Color：Red(or Cutomized)
• Factory Visit：Welcome
• Advantage 1：Full Automatic, Easy Operation
• Advantage 2：High Speed, Energy Saving
• Transport Package：Export Wooden Package
• Specification：L(850-900mm)*W(540-600mm)*H(880-900mm)
• Trademark：Huarui
• Origin：Henan, China
• Production Capacity：1000sets,Month

Basic Info.

Model NO. GW20/25 Name Stirrup Bender/Steel Bar Bending Machine/Steel Be Working Speed 25-30times/Min Bending Diameter 4-25mm Motor Power 2.2-3kw Weight 120-150kg Color Red(or Cutomized) Factory Visit Welcome Advantage 1 Full Automatic, Easy Operation Advantage 2 High Speed, Energy Saving Transport Package Export Wooden Package Specification L(850-900mm)*W(540-600mm)*H(880-900mm) Trademark Huarui Origin Henan, China Production Capacity 1000sets/Month

Product Description

High Quality Stirrup Bender/Steel Bar Bending Machine/Steel Bender
Features of Stirrup Bender/Steel Bar Bending Machine/Steel Bender:
1. Compact design and portable set makes the machine easy to use and transport, it suits for narrowing space work and for household using.
2. Easy operation of the machine will make it a saving of labor cost for you.
3. High quality copper wire motor, guarantee a more stable performance.
4. Enclosed gear box lubrication, low noise, with speed adjustable gear makes the machine long life use.
5. Ultra-high hardened accessories, adjustable baffle guarantee a longer service life, it is a saving of spare parts cost.
6. Standard angle, fast speed, angle variation freely

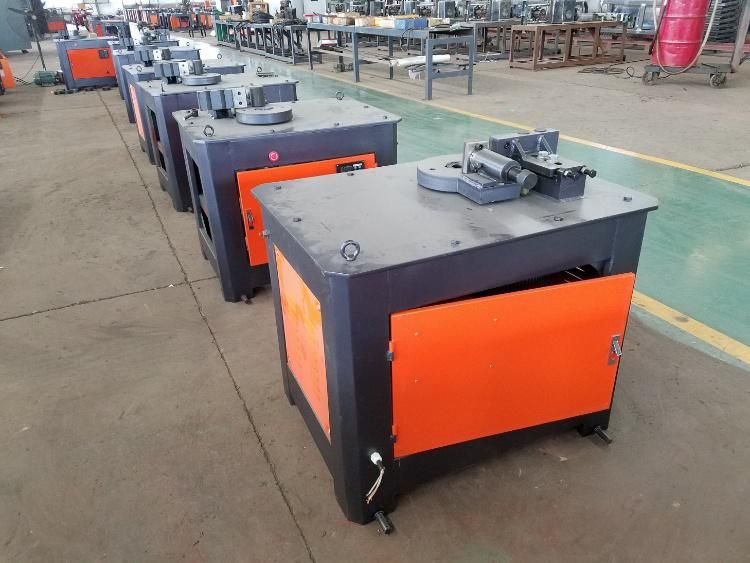

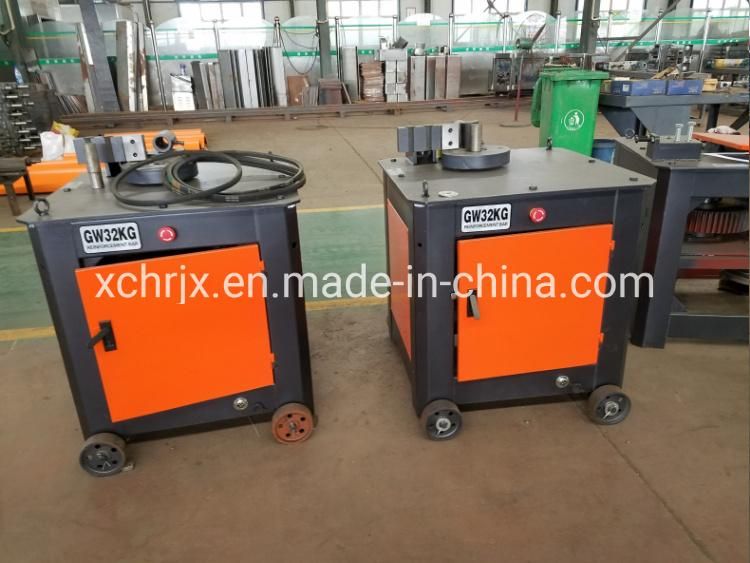

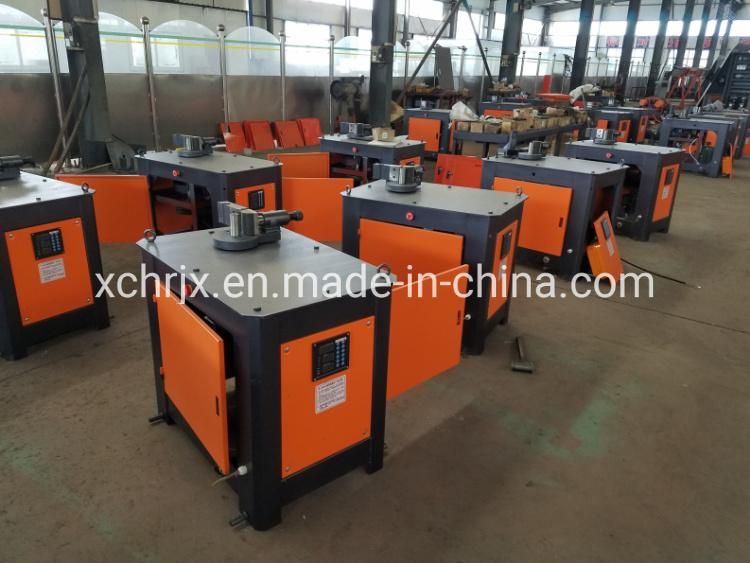

Pictures for show:




Technical Parameters of Stirrup Bender/Steel Bar Bending Machine/Steel Bender:

Model No.	Features
GW-40A Steel bar bending machine	1. Motor power: 3KW(4P) 2. Size: 850*750*840mm 3. NG: 300kg 4. Bending dia.: Round steel: φ6-φ36mm III-grade deformed steel bar: φ6-φ32mm 5. Working dia: 350mm 6. Working frequency: 8-12 times/min Can bend two 28mm diameter steel bar at one time
GW-40B Steel bar bending machine	1. Motor power: 3KW(4P) 2. Size: 970*750*840mm 3. NG: 300kg 4. Bending dia.: Round steel: φ6-φ36mm III-grade deformed steel bar: φ6-φ32mm 5. Working dia: 350mm 6. Working frequency: 8-12 times/min Can bend two 25mm diameter steel bar at one time
GW-50A Steel bar bending machine	1. Motor power: 4KW (4P) 2. Size:  1100*750*840mm 3. NG: 400kg 4. Bending dia.: Round steel: φ6-φ40mm III-grade deformed steel bar: φ6-φ36mm 5. Working dia: 390mm 6. Working frequency: 9-15 times/min
GW60 Rebar bending machine	1. Motor power:5.5KW 2.L*W*H: 1100*900*900mm 3.Weight:680kgs 4.Bending dia. range: Round steel: φ25-φ60mm -grade deformed steel bar: φ25-φ60mm 45 Carbon steel: φ25-φ45mm 5. Spindle speed: 8rpm 6.Working dia.: Φ390mm
GW-24KG bar stirrup bending machine	1. Motor power: 3KW (4 P) 2. Size:  850*550*875mm 3. NG: 155kg 4. Bending max.angle:180˚ 5. Bending Dia.: Round steel:φ5-25mm(Q235) Deformed steel bar: φ5-22mm 6. Spindle Speed:28r/min
GW-28KG bar stirrup bending machine	1. Motor power: 3KW (4 P) 2. Size:  850*550*875mm 3. NG: 175kg 4. Bending max.angle:180˚ 5. Bending Dia.: Round steel:φ5-28mm(Q235) Deformed steel bar: φ5-25mm 6. Spindle Speed:28r/min
GW-32KG bar stirrup bending machine	1. Motor power: 3KW (4 P) 2. Size:  700*700*865mm 3. NG: 220kg 4. Bending max.angle:180˚ 5. Bending Dia.: Round steel:φ5-32mm(Q235) Deformed steel bar: φ5-30mm 6. Spindle Speed:15-18r/min
GW-42KG bar stirrup bending machine	1. Motor power: 4KW (4 P) 2. Size:  900*700*870mm 3. NG: 300kg 4. Bending max.angle:180˚ 5. Bending Dia.: Round steel:φ5-42mm(Q235) Deformed steel bar: φ5-36mm 6. Spindle Speed:15r/min

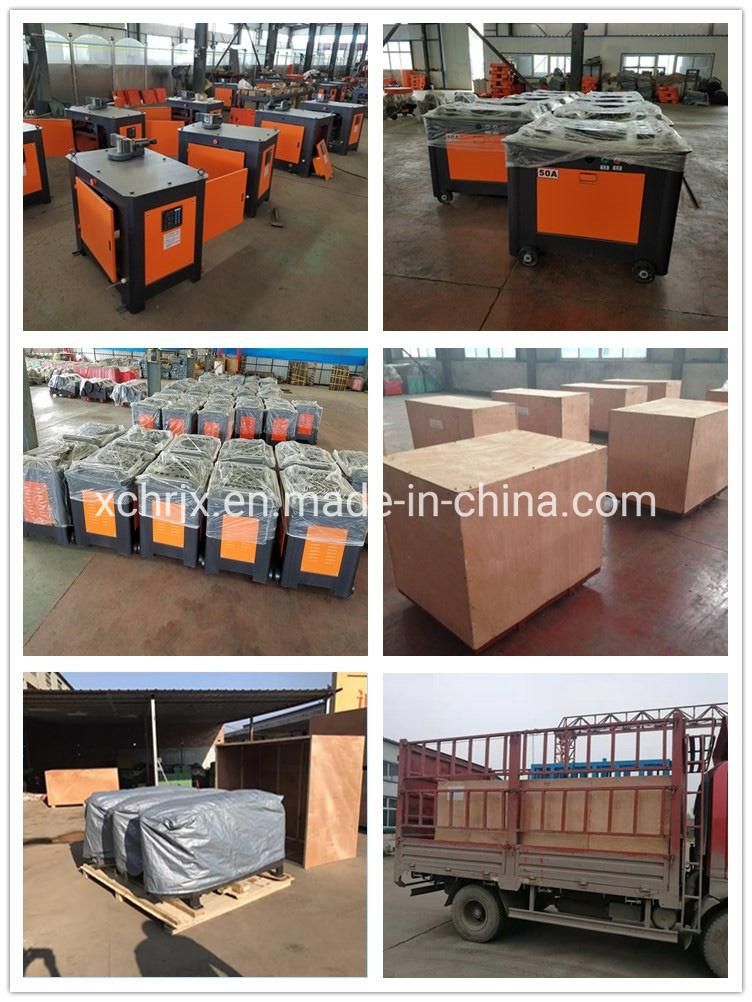

Packing and shipping:
