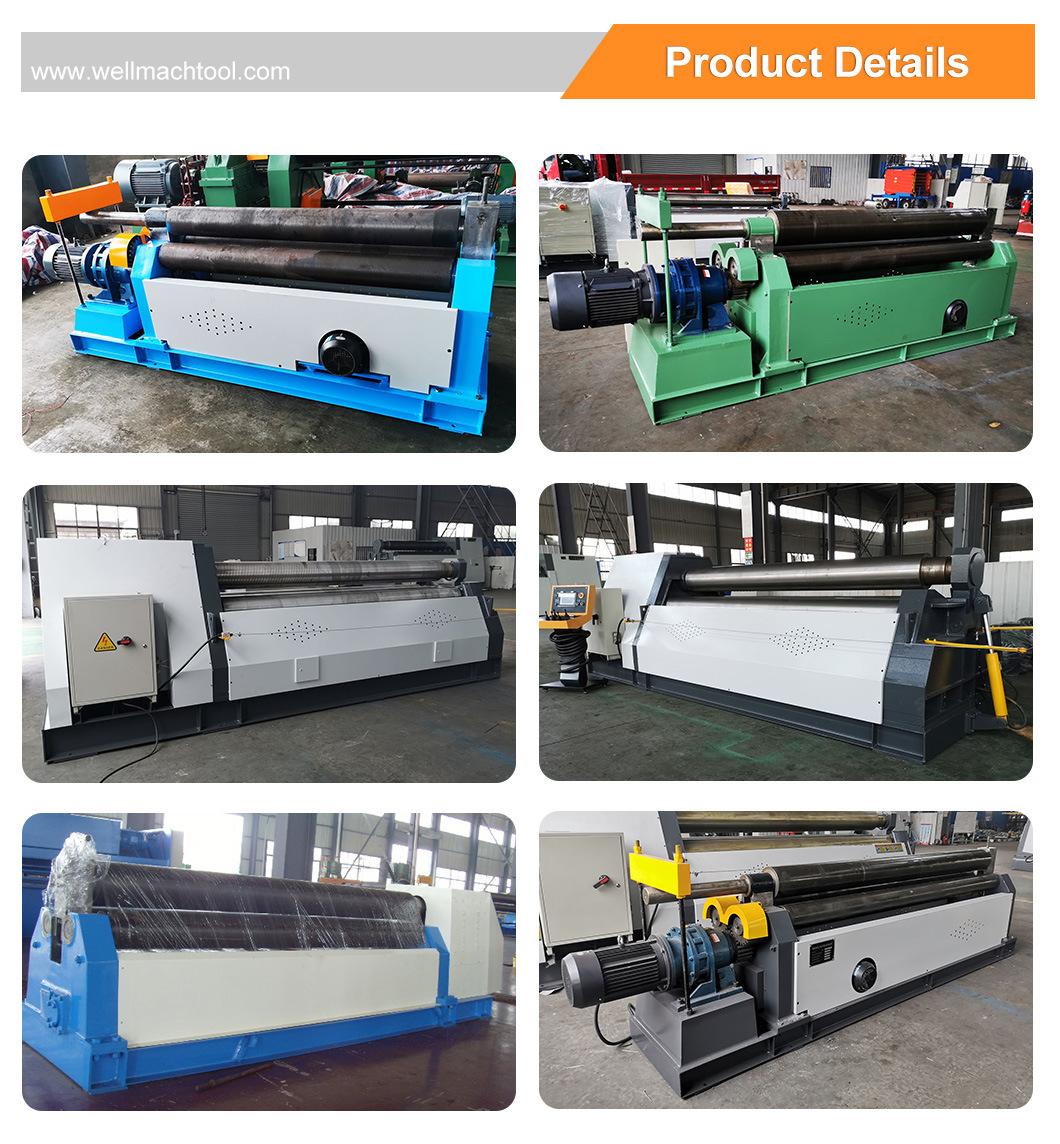

3-Roller Mechanical Bending Machine with Ce Standard

Wmt Cnc Industrial Co., Ltd.
  • Condition：New
  • Certification：RoHS, ISO 9001:2008, CE, CS
  • Automation：Semi-Automatic
  • Type：Roller-Bending Machine
  • Power：Mechanical
  • Machine：Metal Sheet Forming

Base Info

  • Model NO.：W11 6x2000
  • Application：Machinery & Hardware
  • Type for Fold-Bending Machine：Electrical Bending Machine
  • Transport Package：Fumigated Exporting Standard Wooden Case
  • Specification：CE, SGS, ISO9001: 2000
  • Trademark：WMT or customized logo
  • Origin：Chizhou, Anhui, China
  • HS Code：8462299000
  • Production Capacity：100 Sets Monthly

Description

Basic Info.

Model NO. W11 6x2000 Application Machinery & Hardware Type for Fold-Bending Machine Electrical Bending Machine Transport Package Fumigated Exporting Standard Wooden Case Specification CE, SGS, ISO9001: 2000 Trademark WMT or customized logo Origin Chizhou, Anhui, China HS Code 8462299000 Production Capacity 100 Sets Monthly

Product Description


Main specification:


Specification		Max Thickness
 of Coiled Plate		Max Width of
Coiled Plate		Yielding Limit of
Sheet Metal		Coiling
Speed		Min Full
Loading Diameter
of Coiled Plate		Diameter of
Top shaft		Diameter of
Bottom shaft		Central distance
between Bottom
Shafts		Motor
Power		Overall dimensions
 mmmmMPam/minmmmmmmmmKwmm
W11-4×150041500245530015014018532900×720×1000
W11-6×150061500245545016016025042900×720×1000
W11-6×2000620002454.54501851702505.53650×820×1050
W11-6×3200632002454.53802401802807.54850×1100×1100
W11-8×2000820002454.54002301803005.53700×820×1050
W11-8×2500825002454.5   6002301803007.54150×1100×1100
W11-12×20001220002454.56002401802807.536500×1100×1100
W11-12×25001225002454.5600260220340114200×920×1200
W11-12×30001230002454700280250360114900×1300×1300
W11-16×20001620002454650260220340113700×920×1200
W11-16×25001625002454700300250360154400×1300×1300
W11-16×3200163200245485034028044018.55300×14000×1400
W11-20×20002020002454700280250360153900×1300×1300
W11-20×2500202500245485034028044018.54600×1400×1400
W11-25×2000252000245485033027043018.54100×1400×1400
W11-25×250025250024541200380310550225600×1550×2000
W11-30×250030250024541200400350550305760×1700×2110
W11-30×300030300024541200450390600375400×1700×2210
