• Model NO.：QC12Y-12x2500
• Cutting width：2500mm
• Brand：HAVEN
• Transport Package：Steel Pallet
• Specification：CE, SGS, ISO
• Trademark：HAVEN
• Origin：China
• HS Code：8462
• Production Capacity：200unis,Month

Basic Info.

Model NO. QC12Y-12x2500 Cutting width 2500mm Brand HAVEN Transport Package Steel Pallet Specification CE, SGS, ISO Trademark HAVEN Origin China HS Code 8462 Production Capacity 200unis/Month

Product Description

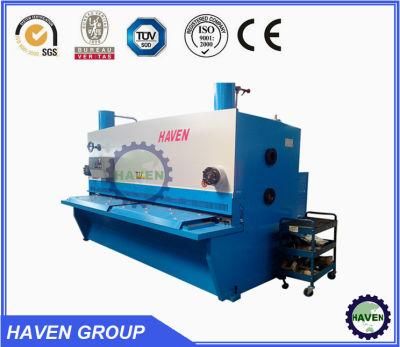

QC12Y-12X2500 Hydraulic Swing Beam Shearing and Cutting Machine






1.Standard Facilities:
 1. ESTUN E21 NC control + Frequency inverter control back gauge and shearing times
 2. Front support arms with stopper and measure scale
3. Main electric components are from SIEMENS or SCHNEIDER
4. Hydraulic seals are from NOK, Japan
5. Hydraulic valves are from OMEGA
6. Hydraulic pump is from SUNNY brand (USA venture in China )
6. Main motor is from SIEMENS brand
7. Steel-welded construction, vibration to eliminate stress, with high strength and good rigidity
8. Hydraulic top-drive, steadiness and reliability
9. With adopts quick manual adjust device, cutting stroke can adjust to be suitable shearing short sheet

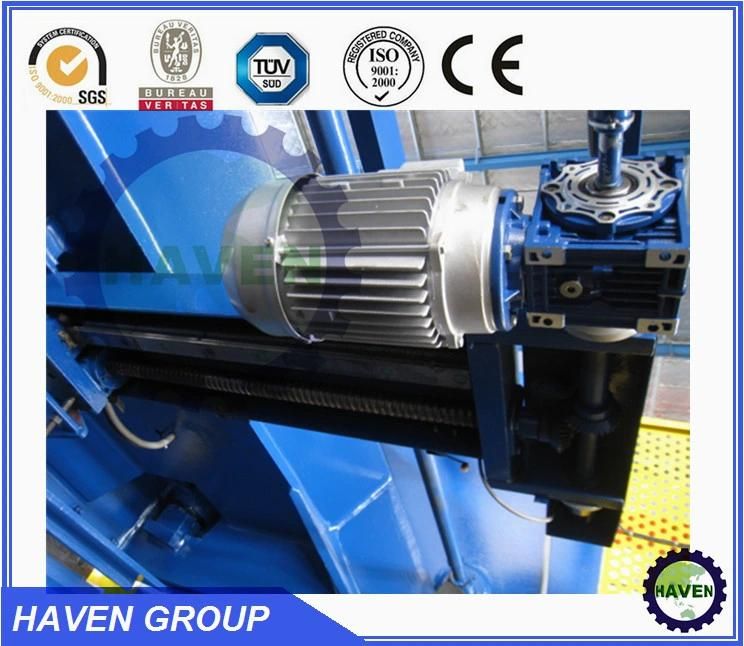

10. With motor-driven back gauge and counter device
11. CE standard back-safety curtain

2. Estun E21 NC Press Brake Control system:
1. Monochrome LCD Box Panel.
2. Integral factor programmable freely
3. Automatic positioning control
5.Internal time relay
6.Ram stroke counter

3. Our Services
1: Response in time after getting customer's claim
1: Provide solution in 1 day
2: Usually solve problem within 2 days
2. For big machine, Installation Service is available as per customer's requirement

4. Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.

5. Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.
We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments.

6. Main functions:
1. The machine frame is welded construction with steel plate, and stress is eliminated by vibration. with high strength, stable performance, easy operation and convenient maintenance.
2. As the cutting beam of machine  has been designed in inner-inclined structure, it is easy for plates to fall down and the accuracy of products can also be guaranteed.
3. With the help of hydraulic drive, swing beam, return of knife beam is smooth and prompt by accumulator ( Nitrogen cylinder ).
4. Stepless adjusting is available for the stroke of knife beam for different length plate shearing.
5. The position of low blade is adjustable, thus ensuring the equilibrium of the gap between blades after regrinding.
6. It is easy and quick to adjust the gap between blades. The value of the gap is indicated on a dial.
7. Motorized adjusting and manual adjusting for the back gauge.


model	Max thickness mm	Max width mm	Shearing angle °	Number of stroke Times/min	Backgauge range mm	Motor power KW	Weight kgs	Overall dimension cm
QC12Y-4x2000	4	2000	1°30′	20	20_600	4	3300	256x140x145
QC12Y-4x2500	4	2500	1°30′	20	20_600	4	3800	313x203x160
QC12Y-4x3200	4	3200	1°30′	18	20_600	5.5	5600	384x218x160
QC12Y-4x4000	4	4000	1°30′	18	20_600	5.5	7000	464x232x160
QC12Y-6x2500	6	2500	1°30′	18	20_600	7.5	5200	313x232x160
QC12Y-6x3200	6	3200	1°30′	16	20_600	7.5	6500	384x232x162
QC12Y-6x4000	6	4000	1°30′	14	20_600	7.5	8500	463x250x170
QC12Y-6x6000	6	6000	1°30′	6	20_800	11	16800	665x250x225
QC12Y-8x2500	8	2500	1°30′	14	20_600	11	6200	314x235x162
QC12Y-8x3200	8	3200	1°30′	12	20_600	11	7300	385x235x162
QC12Y-8x4000	8	4000	1°30′	10	20_600	11	9600	463x250x170
QC12Y-8x6000	8	6000	1°30′	6	20_600	15	17600	665x285x170
QC12Y-12x2500	12	2500	1°30′	12	20_800	18.5	9600	324x305x210
QC12Y-12x3200	12	3200	1°30′	10	20_800	18.5	12000	395x305x210
QC12Y-12x4000	12	4000	1°30′	8	20_800	18.5	14500	475x321x220
QC12Y-12x6000	12	6000	1°30′	5	20_800	22	29500	675x343x230
QC12Y-16x2500	16	2500	2°	8	20_800	22	11600	341x323x223
QC12Y-16x3200	16	3200	2°	7	20_800	22	14000	412x323x223
QC12Y-16x4000	16	4000	2°	6	20_800	22	16800	492x333x270
QC12Y-20x2500	20	2500	2°30′	8	20_800	37	17500	342x333x270
QC12Y-20x3200	20	3200	2°30′	7	20_800	37	25500	418x333x270
QC12Y-20x4000	20	4000	2°30′	6	20_800	37	29000	498x348x283
QC12Y-25x2500	25	2500	2°30′	8	20_800	37	24000	348x343x270
QC12Y-25x3200	25	3200	2°30′	7	20_800	37	32000	418x343x270
QC12Y-32x2500	31	2500	3°	6	20_800	45	33000	376x441x315
QC12Y-32x3200	32	3200	3°	6	20_800	45	35000	459x441x315
