Cutting & Fold-bend Machine

Auto Steel Rule Bender Machine for Laser Die Making

  • After-sales Service:Provided
  • Waterproof Rating:IPX-8
  • Warranty:Lifetime
  • Condition:New
  • Certification:CE, CE TUV
  • Automation:Automatic

Base Info

  • Model NO.:WT11
  • Suitable for:Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
  • Type:Cnc Bending Machine
  • Weight:500kg
  • Raw Material:Steel Blade
  • After Sale Service:Engineers Available to Service Overseas
  • Color:White and Blue
  • Functions:Bending Bridging Cutting Lipping Broaching
  • Blade Thickness:0.45,0.53,0.71,1.05,1.42mm
  • Feeding Precision:0.03mm
  • Optimal Pattern:Dxf Dwg Ai Coredraw Plt
  • Name:WTO Laser
  • Waranty:Life Long
  • Service:English Engineer Overseas
  • Blade Height:8-60mm
  • Motor:Panasonic Servo Motor
  • Mother Board:Lifetime Free Warranty
  • Usage:Die Borad Making
  • Transport Package:Compound Wooden Cases with Exporting Standard
  • Specification:2700*1150*1540
  • Trademark:Worthy Tall
  • Origin:Dongguan City China Prc
  • HS Code:8462219000
  • Production Capacity:5000


Technical Parameters                     Blade thickness(mm)0.450.530.71(2PT)1.07(3PT)1.42(4PT)  Blade height(mm)8-258-258-308-408-60Maximum bending angle100100100100100Minimum bending radius of 90 degrees(mm) bending size of the front(mm) bending size of the Rear(mm)>0>0>0>0>0Feeding Accuracy0.03/300mm  Panasonic Server Motor And HighWin Precision Linear guideBending Flatness0.2/100mmBridge ModeAutomatic continuous bridge, bridge height adjustable(15--18mm) Gear Motor driveCutting ModeAutomatic cut-off or swing(Automatic identification alarm and self Monitor)Gear Motor drive Full Power add olecranon pneumatic machineLine CutEfficiently Bending the Blade and Cutting the Line At the Same time.Best Files formatDXF,DWG,AI,CDR,PLTWeight620kgvolume2660*1150*1540Power1.8kw  110V  220V / 50HZ  60HZ
>>> Auto Blade Bending Machine Details
Auto Steel Rule Bender Machine for Laser Die Making
Auto Steel Rule Bender Machine for Laser Die Making

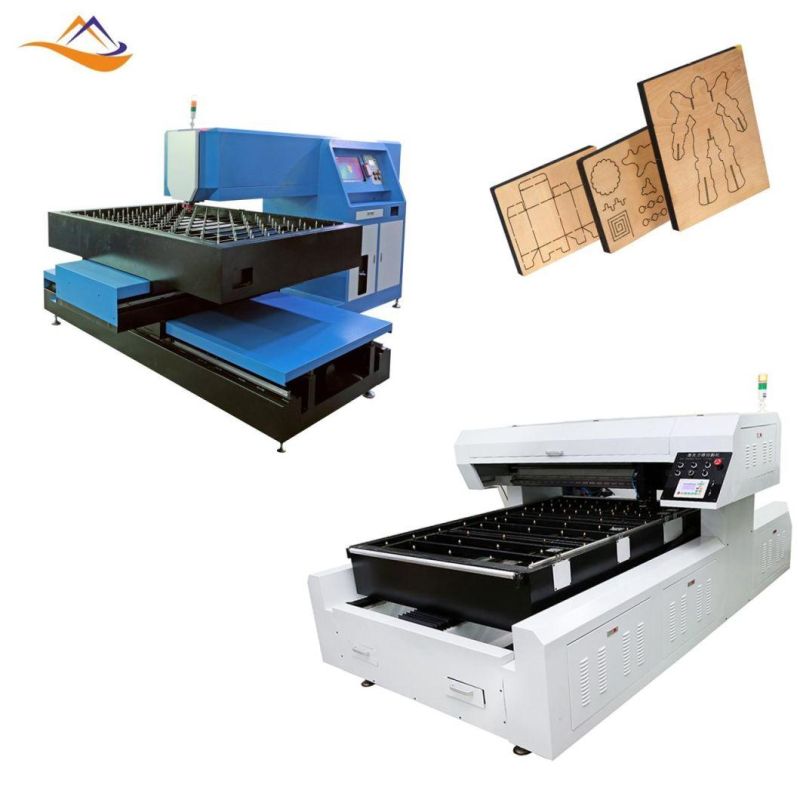

>>>Die Board Laser Cutting  Machine Details
Auto Steel Rule Bender Machine for Laser Die Making
1,400W 600W can be a single head laser cutting die cutting machine cutting 18mm and 22mm board laser cutter template,6-9mm PVC rubber sheet(add oxygen can cut iron plate ,stainless steel,13mm can do blister knife template ,high efficiency ,uniform kerf ,consistent ,the precision error is less than 0.1mm. Maintenance is simple. Do not need gas. Equipment structure is compact .Need small area to install it. The cabinets are made of high quality cold-rolled steel plate,An external power source 220V. and low cost. Technology of simple knife adjustment ,cutting software and AutoCAD ,CorelDraw, Adobe Photoshop can compatible edit the path manual operation. maintenance cost is low. greatly saves the production cost of laser cutting die.
2,Adopt the most advanced 400W 600W C02 sealing type water-cooled laser tube combined with precision up to 0.05mm of numerical control mechanical systems. Not only Get The precision of laser die making, But also reduce the costs of laser die making. Suitable for wooden board laser die cutting and precision electronic laser die making. Adopt gantry structure ,to avoid the optical path deviation size problem that high power laser machine has.
3,Do not need to add any auxiliary gas to cut, laser cutting die consumption is extremely low. an external power source 220V is ok. And no opening preparation delay. The cutting costs is only 5 RMB/Hour
4,Can do one-time cutting 1mm-22mm wooden board, Plastic board, organic glass, Acrylic board at speed of 25-30m/h. And the machine can cut the gap at 0.45mm, 0.71mm, 1.07mm, 1.42mm and so on at uniform cutting kerf width also up and down seam.


High Precision HIWIN Screw guideLaser TypeCO2 direct-current stimulated glass laserServer Motor Inovance high precision server motorRe-positioning Precision+-0.02mmCutting Precision+-0.01mmCutting Board Thickness1-25mm poly wood (Cut 1.5mm stainless steel board and 3mm Normal steel when Add oxygen gas)Cutting Speed1-35m/h (18mm wooden board)  1-30m/h(18mm wooden board)Pneumatic parts:Taiwan-- AirTagBest Files formatDXF,DWG,AL,CDR,PLT (Auto Cad, Core Draw)Cutting SizeX-axis travel length: 1200mm  Y-axis travel length : 1800mmPower4kw  220V/ 60HZ  50HZLaser Power400W Single HeaderWork Temperature0-45ºClight-dimmer1 PcsTool1 Sets of tool boxFocus Len1 Pcs ofLaser Tube1 Pcs of QT 400W laser tubehigh efficiency air filter1 SetsSmock Exhaust fan1 PcsWater CoolingCW-6000Warranty12 month (except laser tube and lens)Weight2000kgOverall Size3400*2300*1500

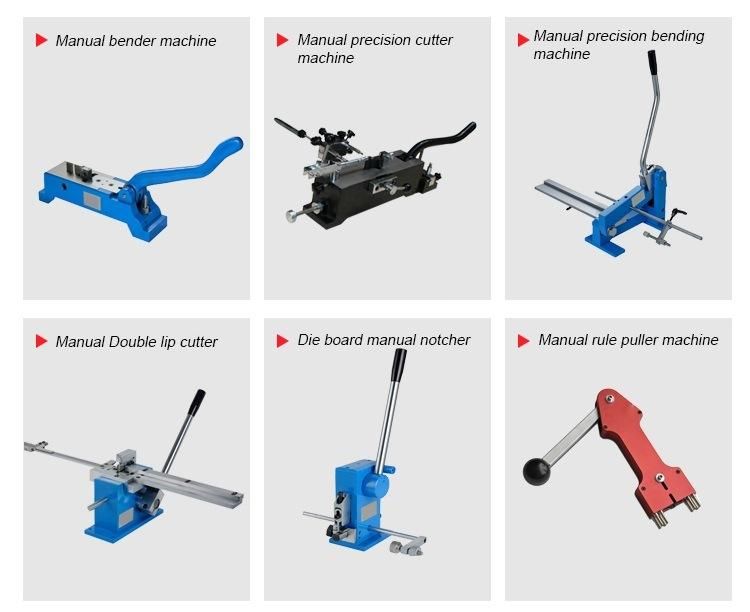

>>>Die Making Manual Machine Details

Manual Die board tools are widely use in plywood die board making factory and  die board making work shop.That is good as assistant tools after you buy our blades bending machine for make plywood die board.Also we can provide series of dies for board maker industry machinery.
Auto Steel Rule Bender Machine for Laser Die MakingAuto Steel Rule Bender Machine for Laser Die Making

>>> Package & Shipping
Each machine is well packed with export standard wooden box.
We will make photos for the machine before the shipping and let you know the processing of the packing and loading.
Auto Steel Rule Bender Machine for Laser Die MakingAuto Steel Rule Bender Machine for Laser Die MakingAuto Steel Rule Bender Machine for Laser Die Making
Why Choose Us
⊙ WT Bend Machine Can process The Minimum radius of processed 0.5mm,While Other 1.0mm.
⊙ Automatic identificate Cutting direction,Cutting The Knife At any short you want,But Others Don't have those functions,The Shortest Knife to be 2.5mm.
⊙ Automatically adjust the height of the bridge.15 18 mm By a switch.
⊙ No Noise Of Cutting and Bridge By Motor Contril,No Helpless Or Blocking Knife.However Other ⊙ Company usually adopt Pneumatic control,there will occur the Phenomenon Of Helpless And Blocking Knife.
⊙ WT Bend Machine Can Make Bridge Hole continusly,Continuous Working,No Phenomenon Of Round-trip back to Make bridge.
⊙ WT AutoBend Machine Has The Integrated Working(Selsct All The Knife you want to bend,Then the Machine Will bend All the Knife Continusly,The Same as Cutting Line).
⊙ WT AutoBend Machine Has The Automatic alarm and Self Protect Function.When false operation and machine breakdown,The Machine Will Stop and Show the Erro Code,You Can Check it easily.
⊙ All Parts of the Machine ate produced by Vike self.It is rather convenient to Maintain and Replace.All The Mold Of Bending machine are Maintained for free.
⊙ The AutoBend Control System is developed by ourslef,we promise it is free any customer to update lifetime.Our Machine Also can bend the knife and cut the line at the same time.
⊙ The shimpo reducer is original imported from japan,while others are made in china only.

>>> Please Let Us Know
1.what machine do you need?
2.what materials will be processed? The size and thickness?
3.what is your business scope? Are you end user or distributor?

Our other SNS contact:

We are also the proffessional factory to produce Die Board Laser Cutting machne. 400W CO2 laser cutting machine. 600W CO2 laser cutting machine. Auto Balde Bender Machine for die board making And also being the experter in Mattress Quiling machine for bedfabric industry sewing machine, multi-needle quilting machine .  MDF laser cutting machine, paper laser cutting machine, plastic laser cutting machine,wood laser cutting machine,acrylic laser cutting machine, glass laser cutting machine,Photo Frame laser cutting machine also our competive products.

Any more product information, please contact us !  Customer Needs is my Pursuit !
