China Kingball 3+1 Axis Kcn-10032 CNC Hydraulic Press Brake
Nanjing Jinqiu CNC Machine Tool Co., Ltd.- Waterproof Rating：IPX-8
- Warranty：2-year
- Condition：New
- Certification：ISO 9001:2000, ISO 9001:2008, CE
- Automation：Automatic
- Suitable for：Aluminum, Carbon Steel, Stainless Steel
Base Info
- Model NO.：KCN-10032
- Type：Press Brake
- CNC Controller：CT8 Switzerland Brand
- Main Motor：Siemens Germany Brand
- Electrical Components：Schneider France Brand
- Gear Pump：Sunny USA Brand
- Seal Ring：Nok Japan Brand
- Hydraulic System：Boschrexroth Germany Brand
- Ball Screw ,Linear Guide：Hiwin Taiwan Brand
- Grating Ruler：Givi Italy Brand
- Tubing Connector：Emb Germany Brand
- Servo Motor and Drive：Thinkvo China Brand
- Transport Package：Nude Package or Plastic Paper
- Specification：CE & ISO Certificated
- Trademark：KingBall
- Origin：China
- HS Code：8462299000
- Production Capacity：100 Sets,Month
Description
ParameterUnit 1 Nominal pressure 1000 KN 2 Table length 3200 mm 3 between columns 2700 mm 4 Max.Shut height 460 mm 5 slide stroke 200 mm 6 Throat depth 400 mm 7 Main motor power 7.5 KW 8 Down Speed 180 mm/s 9 Pressing Speed 12 mm/s 10 Return Speed 160 mm/s 11 Control axis X+Y1+Y2+W(mechanical) / 12 X axis Stroke 500 mm 13 X axis Speed 300 mm/s 14 Backgauge Stoppers 2 / L 3700 mm 15 Overall dimension W 1750 mm H 2630 mm 16 Machine weight 7500 kg

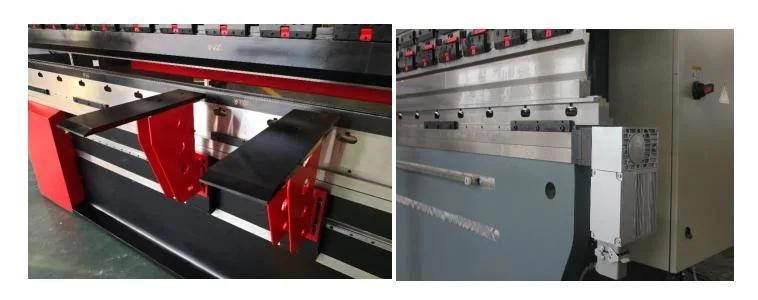

Double sliding front support arm installed High precision electric table crowning
on the linear guide, movable easy

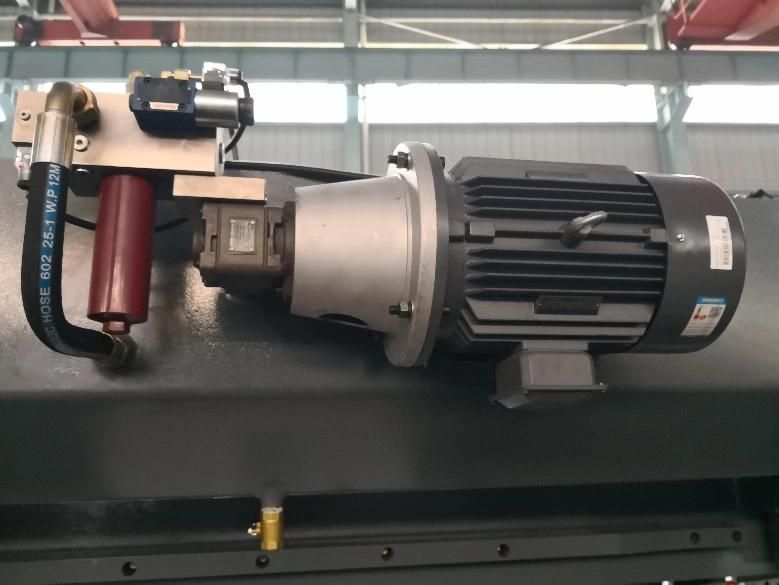

Siemens main motor German brand.
Sunny pump USA brand.
Rexroth valve German brand.

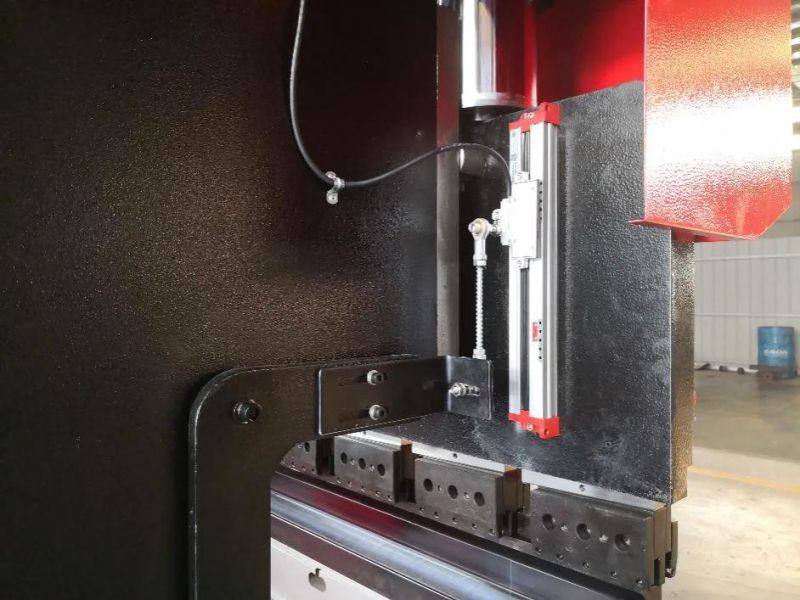

The high-precision grating ruler is installed on the c-plate

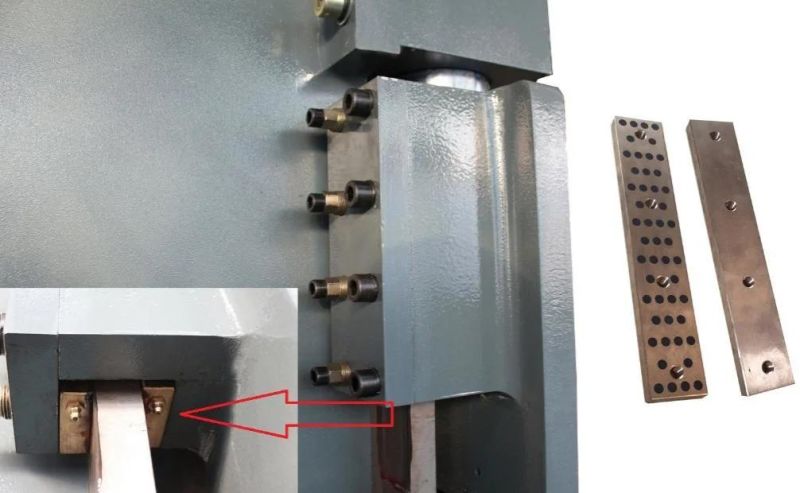

Auxiliary guide and Ram guideway use the brass, wear-resisting, long service life.

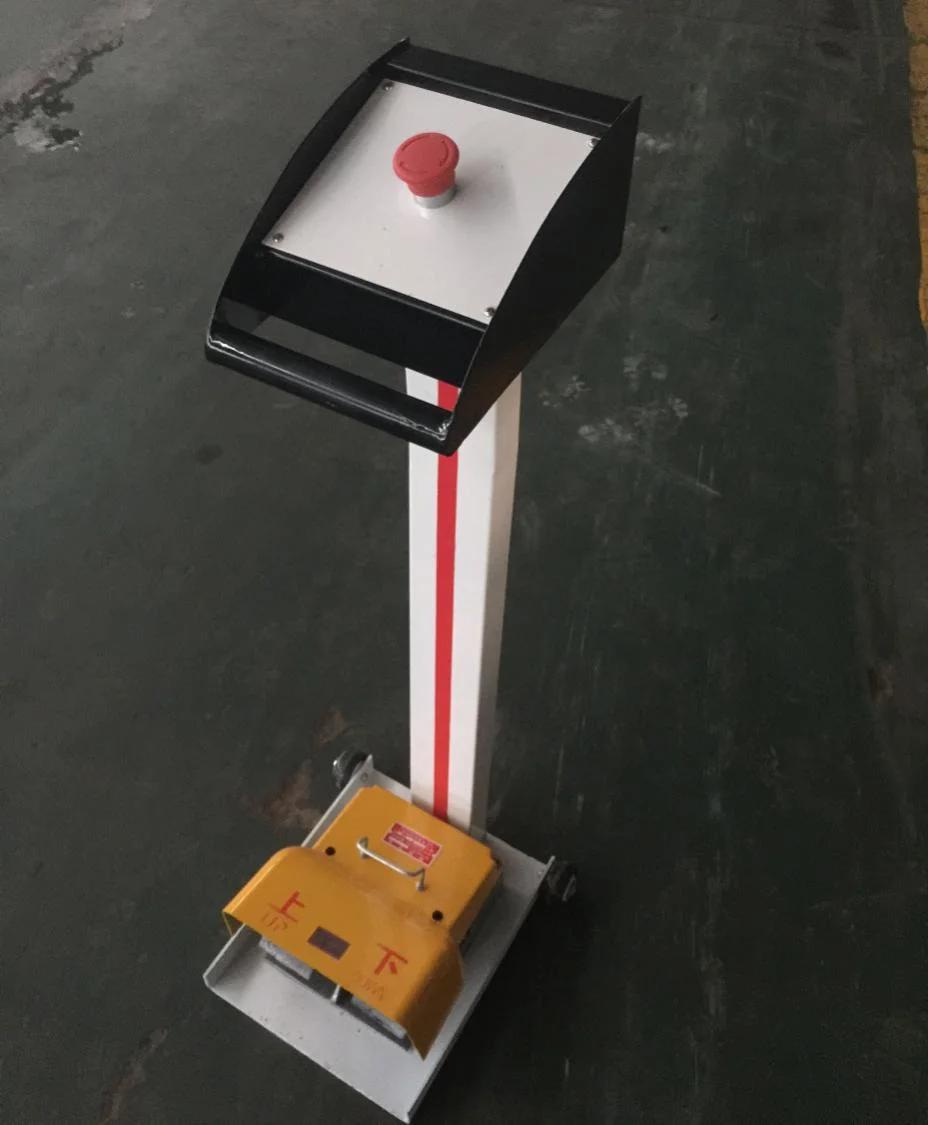

Pedal switch with emergency stop, safe operation, the base with rollers easy to move.

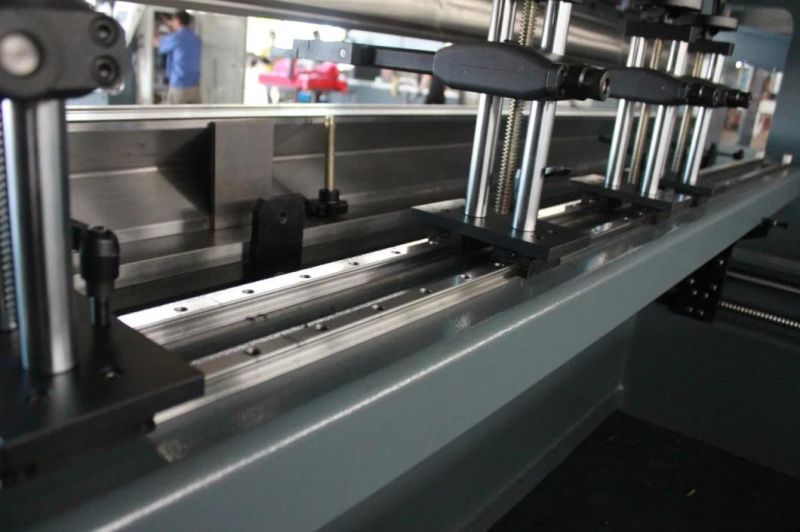

The stopper move left and right on two linear guides
Main configuration

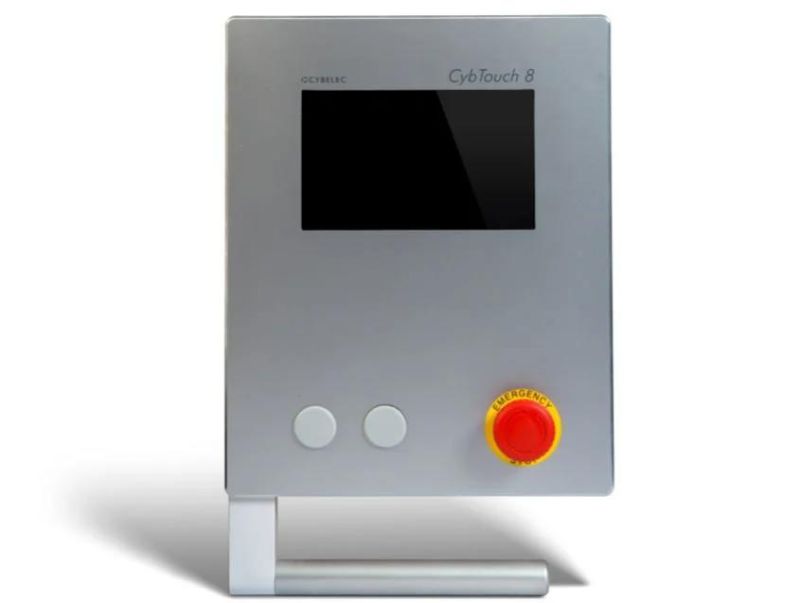

CybTouch 8 CNC controller
Easy Operating
Intuitive user-friendly interface.
Simple pages, clear display, large keys.
Large, vivid and high-contrast fully touchscreen.
Complete programming for efficient mass-production with multiple bends.
Easy single bends with EasyBend page.
On-line help and interactive warning pop-ups.
Comfortable wireless data backup and software updating using PC or Notebook.
Large variety of languages available.
Better bending
Various automatic calculations of bend functions.
Bending sequences and programs can be memorized.
Angle, pressure and crowning management.
Easy manual movement.
Offline 2D software available.
Powerful
Controls 3 axes (with 4th axis as option).
2D graphic profile creation with manual sequencing (option).
Bend allowance calculation.
Pressure - crowning calculation.
Modular tools for each part or bend.
Angle and back gauge correction.
Telemaintenance via wireless connection with PC or notebook.
USB port for memory stick for data transfer/backup.
The standard accessories are in the below:
Double sliding front support arm installed High precision electric table crowning
on the linear guide, movable easy
Siemens main motor German brand.
Sunny pump USA brand.
Rexroth valve German brand.
The high-precision grating ruler is installed on the c-plate
Auxiliary guide and Ram guideway use the brass, wear-resisting, long service life.
Pedal switch with emergency stop, safe operation, the base with rollers easy to move.
The stopper move left and right on two linear guides
Main configuration
| Name | Producer |
| CNC controller | CT8 Switzerland brand |
| Main motor | Siemens Germany brand |
| Electrical components | Schneider France brand |
| Gear pump | Sunny USA brand |
| Seal ring | NOK Japan brand |
| Hydraulic system | Boschrexroth Germany brand |
| Ball screw ,Linear guide | HIWIN Taiwan brand |
| Grating ruler | GIVI Italy brand |
| Tubing connector | EMB Germany Brand |
| Servo Motor and drive | Thinkvo China brand |
CybTouch 8 CNC controller
Easy Operating
Intuitive user-friendly interface.
Simple pages, clear display, large keys.
Large, vivid and high-contrast fully touchscreen.
Complete programming for efficient mass-production with multiple bends.
Easy single bends with EasyBend page.
On-line help and interactive warning pop-ups.
Comfortable wireless data backup and software updating using PC or Notebook.
Large variety of languages available.
Better bending
Various automatic calculations of bend functions.
Bending sequences and programs can be memorized.
Angle, pressure and crowning management.
Easy manual movement.
Offline 2D software available.
Powerful
Controls 3 axes (with 4th axis as option).
2D graphic profile creation with manual sequencing (option).
Bend allowance calculation.
Pressure - crowning calculation.
Modular tools for each part or bend.
Angle and back gauge correction.
Telemaintenance via wireless connection with PC or notebook.
USB port for memory stick for data transfer/backup.
The standard accessories are in the below:
- Anchor bolt
- Hex nut
- Seal ring
- Gasket
- Grease gun
- Allen wrench
- Foot switch
- Front support arms
- Electrical box key, control panel key
- Operation manuals
