• Model NO.：QC11Y-16X4000
• control system：E21,E200S
• Transport Package：Plastic Covering
• Specification：QC11Y-16X4000
• Trademark：HAVEN
• Origin：China
• HS Code：8462
• Production Capacity：30 Units,Month

Basic Info.

Model NO. QC11Y-16X4000 control system E21/E200S Transport Package Plastic Covering Specification QC11Y-16X4000 Trademark HAVEN Origin China HS Code 8462 Production Capacity 30 Units/Month

Product Description

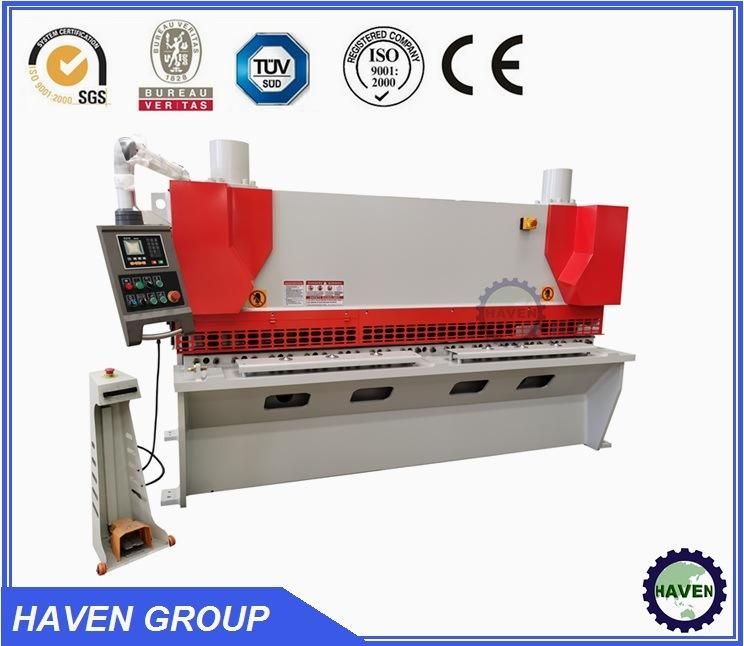

                                        QC11Y Series Hydraulic Guillotine Shearing Machine







Main features:
The frame is entirely welded with steel plates, vibration to eliminate stress. With high strength and good rigidity.

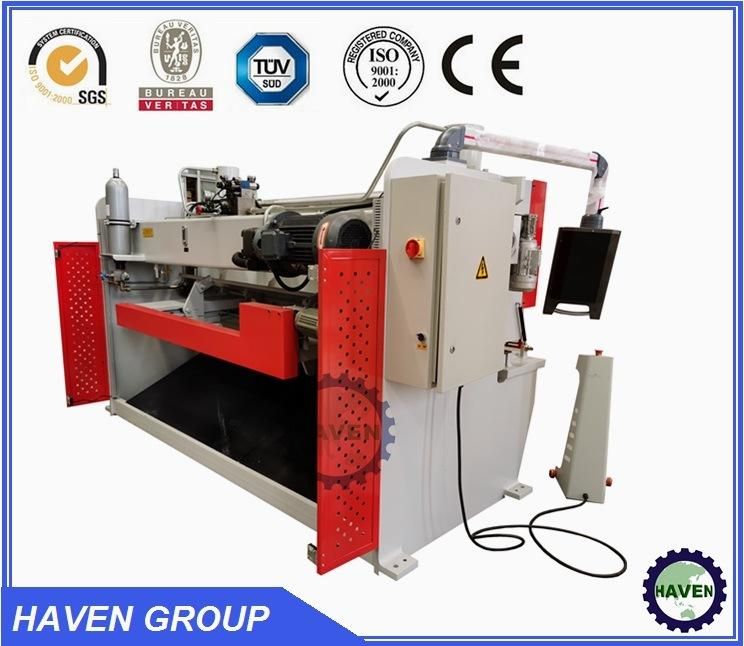

Hydraulic drive, return of knife beam is smooth and prompt by accumulator or nitrogen cylinder.With easy operation, reliable performance and nice appearance.

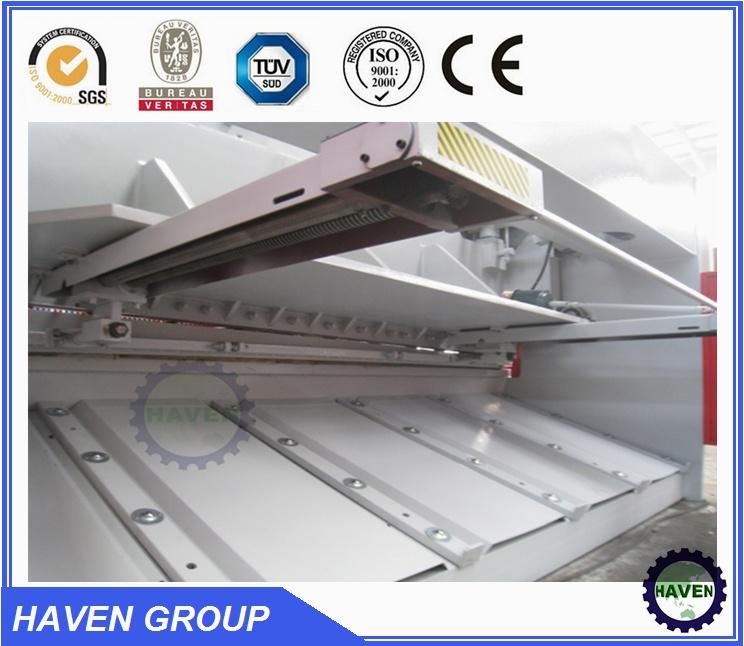

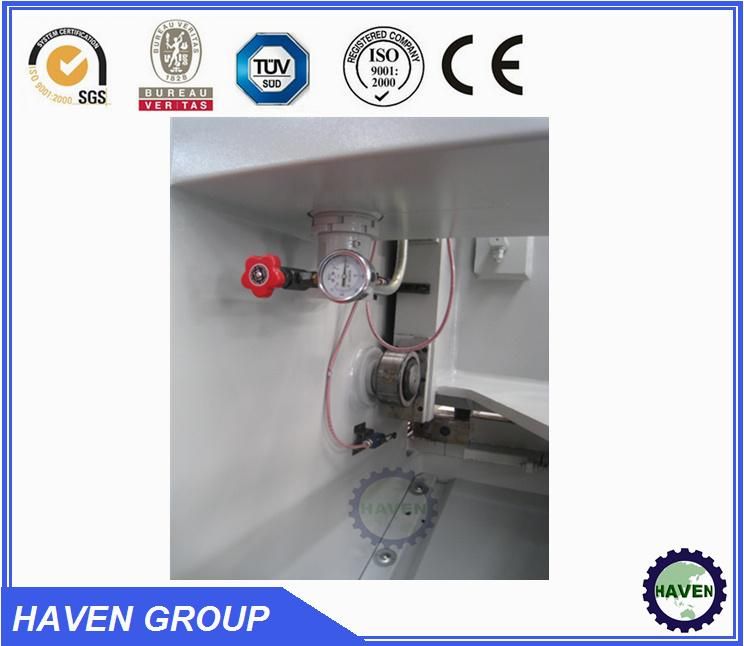

There is indicator for adjusting the blade clearance, easily operation.
There are safety fences in the working area to ensure the personal safety
There are numerical display for cutting number and the length of back gauge.

Main Specification:

Parameter	Thickness (mm)	Width (mm)	Shearing  Angle	Number  of stroke	Backgauge (mm)	Motor (kw)	Net weight (kg)	Overall  Dimensions (mm)
4*2000	4	2000	1° 30'		600	4	3500	2550*1430*1560
4*2500	4	2500	1° 30'		600	4	4000	3100*1430*1560
4*3200	4	3200	1° 30'		600	5.5	5300	3840*1680*1670
6*2500	6	2500	1° 30'	18	20-600	7.5	6000	3040*1616*1620
6*3200	6	3200	1° 30'	14	20-600	7.5	7200	3840*1610*1620
6*4000	6	4000	1° 30'	10	20-600	7.5	10000	4640*1705*1700
6*6000	6	6000	1° 14'	10	600	18.5	17000	6600*1950*1980
8*2500	8	2500	1° 30'	14	20-600	11	6.500	3240*1610*1620
8*3200	8	3200	1° 30'	10	20-600	11	7.800	4010*1610*1620
8*4000	8	4000	1° 30'	8	20-600	11	11000	4680*1705*1700
8*6000	8	6000	1° 30'	8	20-800	18.5	19000	6880*2210*2890
10*2500	10	2500	1° 48'	12	20-600	15	8000	3350*2050*1950
10*3200	10	3200	1° 48'	10	20-600	15	10000	4050*2050*1950
10*4000	10	4000	1° 30'	8	10-800	18.5	12500	4850*2300*2200
10*6000	10	6000	1° 30'	8	20-1000	30	20000	7020*2580*3280
12*2500	12	2500	1° 30'	12	10-800	18.5	11000	3320*2050*2230
12*3200	12	3200	1° 30'	10	10-800	18.5	12500	4020*2050*2230
12*4000	12	4000	2°	8	10-800	22	15000	4850*2400*2200
12*6000	12	6000	1° 30'	6	20-1000	37	23000	7020*2680*3380
12*8000	12	8000	1° 30'	4	20-1000	45	33000	9020*2680*3380
16*2500	16	2500	2° 30'	8	10-800	18.5	15000	4850*2400*2200
16*3200	16	3200	2° 30'	7	10-800	22	18000	4100*2060*2010
16*4000	16	4000	2°	6	10-800	30	23000	4900*2400*2250
20*2500	20	2500	2°	6	10-800	37	16000	3440*2088*2570
20*3200	20	3200	2°	5	10-800	37	23000	4100*2350*2710
20*4000	20	4000	2° 30'	4	10-800	37	30000	4920*2400*2790
25*2500	25	2500	3°	5	40-1000	45	19000	3480*2410*2690
25*3200	25	3200	3°	5	40-1000	45	26000	4180*2410*2690
25*4000	25	4000	3°	5	40-1000	45	33000	4985*2410*2690

Control system E200S main completed:
* E200S control back gauge and cutting times with ball screw and servo motor;
* Hydraulic gear pump brand SUNNY;
* Main Electric Components Are From SIEMENS Brand;
* Hydraulic valve is from HUADE Brand;
* Hydraulic Seal Rings Are From Japan NOK;

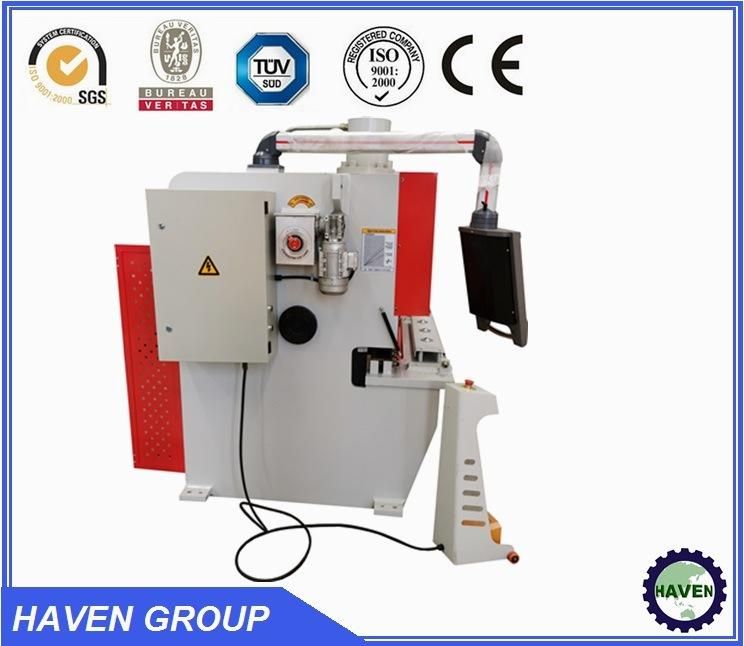

* Electrical Control Box;

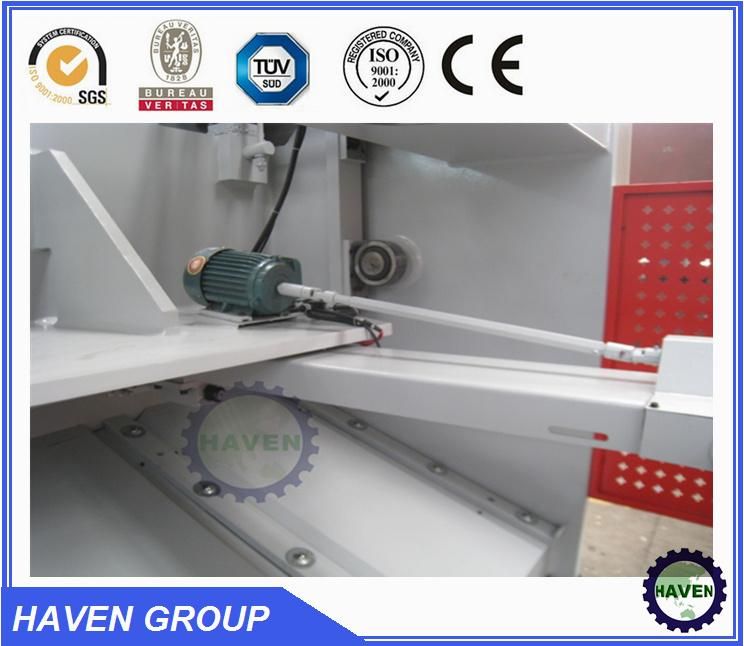

* Motorized Back Gauge;
* Pedal Control Switch;
* Foundation Bolts;
* Roller On Front Table;
* Front Support Arm With Stopped;

Control system E21S main completed:
* E21S only control back gauge with inverter;
* Hydraulic gear pump from SUNNY brand;
* Main Electric Components Are From SIEMENS Brand;
* Hydraulic valve is from HUADE Brand;
* Hydraulic Seal Rings Are From Japan NOK;
* Electrical Control Box;
* Motorized Back Gauge;
* Pedal Control Switch;
* Foundation Bolts;
* Roller On Front Table;
* Front Support Arm With Stopped;
