Press Brake Sheet Metal Auto Bender Metalworking Bending MachineNANTONG HAITUO MACHINERY CO., LTD.
- Waterproof Rating：IPX-3
- Certification：ISO 9001:2008
- Suitable for：Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
- Model NO.：WC67Y
- Type：Press Brake
- CNC Control Axis：Y1-Y2-X-R-Axis & Crowning
- Backgauge & RAM Drive：Inverter From Schneider Electrical
- Electrical Components：Schneider Electrical From French
- Motor Power：Siemens From Germany
- Machine Voltage：by Buyer′s Demanding
- Transport Package：Steel Pallet,Soft Coverings
- HS Code：8462219000
- Production Capacity：500,Year
Basic Info.Model NO. WC67Y Type Press Brake CNC Control Axis Y1-Y2-X-R-Axis & Crowning Backgauge & RAM Drive Inverter From Schneider Electrical Electrical Components Schneider Electrical From French Motor Power Siemens From Germany OEM Accepted Machine Voltage by Buyer′s Demanding Transport Package Steel Pallet/Soft Coverings Trademark HAITUO Origin China HS Code 8462219000 Production Capacity 500/Year
CNC PRESS BRAKE /AUTO BENDER
1. It adopts an all-steel welded structure with sufficient strength and rigidity.
2. It is hydraulically driven. The cylinders at both ends of the machine tool are placed on the sliding block to directly drive the sliding work.
3. The slider synchronization mechanism adopts a torsion shaft for forced synchronization.
4. Using a mechanical stop block structure, stable and reliable.
5. The stroke of the slider can be adjusted quickly and manually, and the counter is displayed.
6. Oblique wedge-type deflection compensation mechanism to ensure higher bending accuracy.
Features of CNC bending machine:
1. Direct angle programming with angle compensation function.
2. The grating ruler real-time detection feedback, copy correction, full closed-loop control, back gauge, and slider dead-gauge positioning accuracy is ±0.02mm.

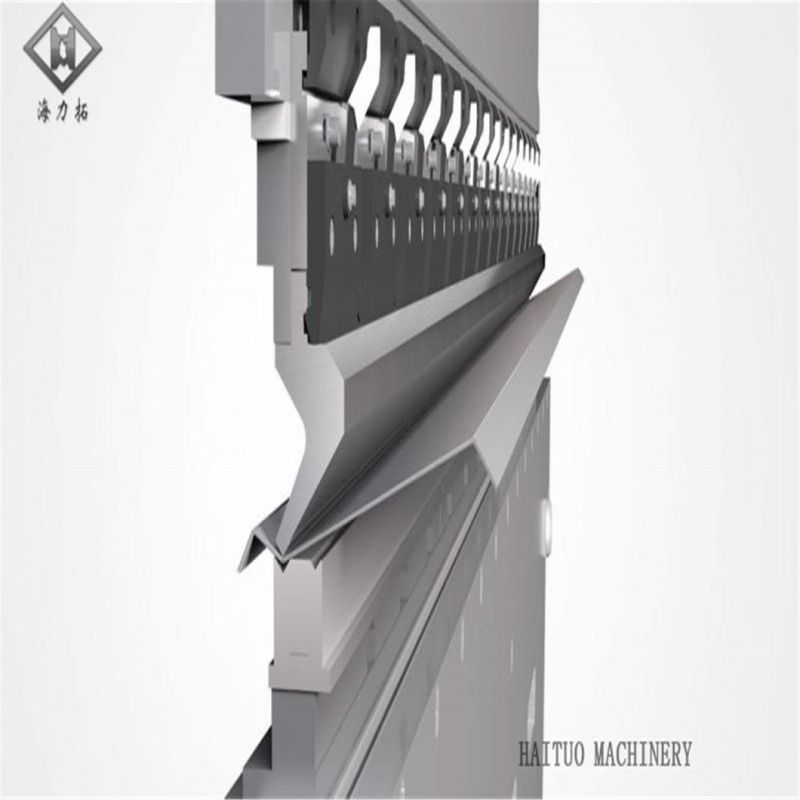

3. The upper mold adopts a quick clamping device, and the lower mold adopts a wedge deformation compensation mechanism.
4. With a multi-step programming function, it can realize multiple automatic operation, complete multi-step parts one-time processing, and improve production efficiency.
5. The imported hydraulic system with stable performance and compact structure can be selected according to user requirements, and the back gauge can be driven by the ball screw and timing belt.
|Model||Nominal Pressure(KN)||Length of the working table(mm)||Distance between uprights(mm)||Throat depth(mm)||Ram stroke(mm)||Motor Power(KW)|

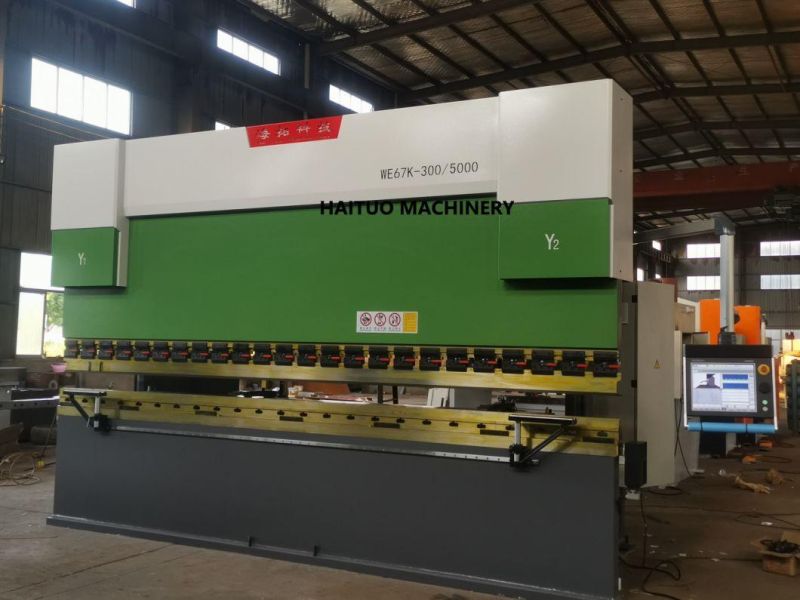

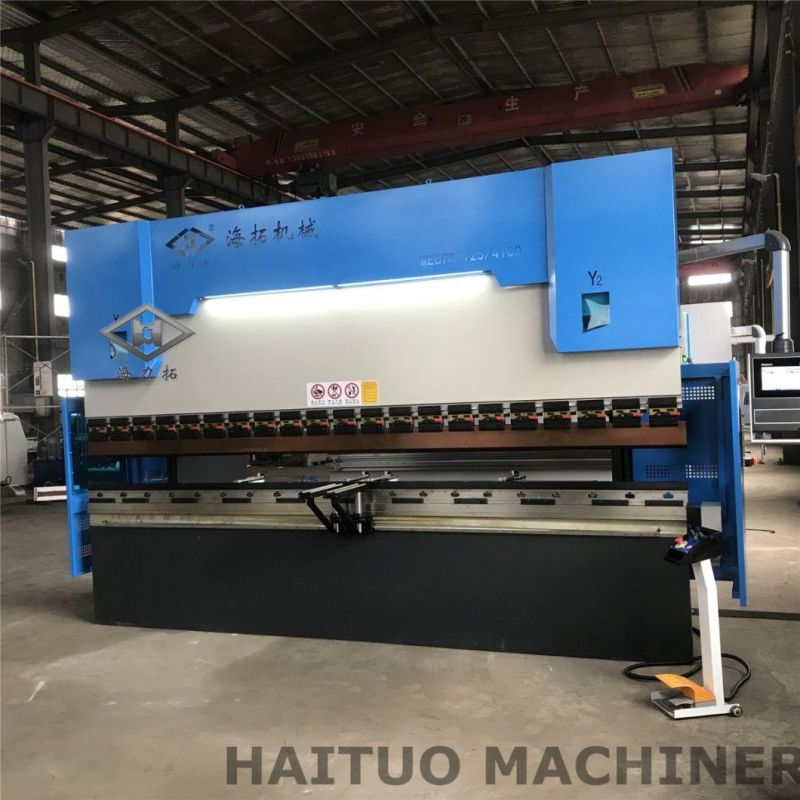

VIEW OF MACHINE

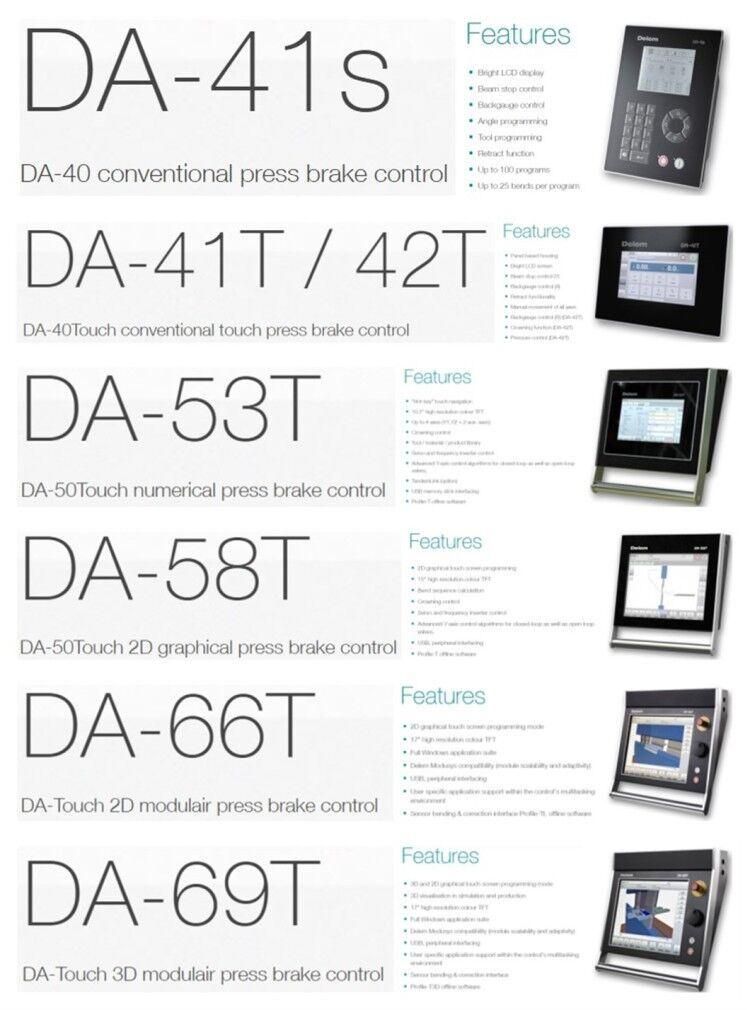

Optional CNC system
Application Consulting: Our consultants understand the application of bending and shearing technology. We are always ready to provide you with information about products, prices, technology, industry solutions, etc., and share our valuable knowledge to help you develop optimized solutions.
Inspection reception: You can make an appointment to visit the exhibition hall and visit the company on-site inspection. We will provide you with a professional receptionist.
Service after sale:
At the same time, we also attach great importance to services, the company's service mechanism: customer return visits, continuous improvement, rapid response, efficient and accurate, to ensure stable and efficient operation of products, to a large extent to help customers improve economic efficiency. The advanced nature of technology is the guarantee of product quality, and the company will have completely independent intellectual property rights.
Two years of free warranty and lifetime maintenance for the equipment for your purchased equipment. During the warranty period, only due to design defects, manufacturing quality, and quality of purchased parts, our company is responsible for free maintenance. The company provides the required replacement parts (except for consumable parts). Over the warranty period, repairs only are charged at the cost price. At the same time, you will enjoy a lifetime software upgrade from the date of purchase; our engineers will provide a quick response when service is required.
Depending on your needs, we can perform a regular preventive overhaul on your machine or repair it when you need it. Regularly adjust and calibrate the guaranteed performance of the machine. Some potential problems can also be resolved before they break out to avoid affecting production efficiency.
We have established a comprehensive marketing network in China and the international marketing network is constantly evolving. You can check out our service network on our official website. After-sales service response time is 24 hours. You can call a service call or send an email. The after-sales engineer will give a clear response within 24 hours or confirm whether it is necessary to go to the equipment site.
We have established a variety of online service channels, you can contact us through customer service phone, customer service email, website online, website message, and other channels to get the services you need.
To use original spare parts and consumables can optimize machine productivity. We can guarantee that there are enough spare parts and guarantee a preferential price and fundamentally to control the quality of the repair.
It is our commitment to fix all problems as quickly as possible after they are brought to our attention. If you have any questions about our support policies please contact us.
For more product details, please email us.
